Working On Rear Lid

Location	Description	Type	Basic value

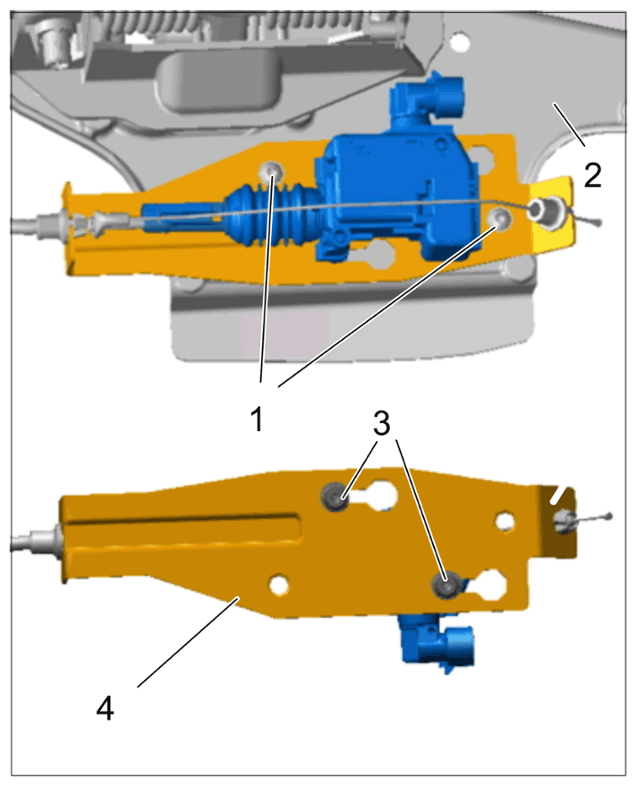

Fastening screw securing retaining bracket to rear spoiler	Item 1	Tightening torque	10 Nm (7.5 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor
Fastening screw securing rear lid release motor to retaining bracket	Item 3	Tightening torque	2.5 Nm (2 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor

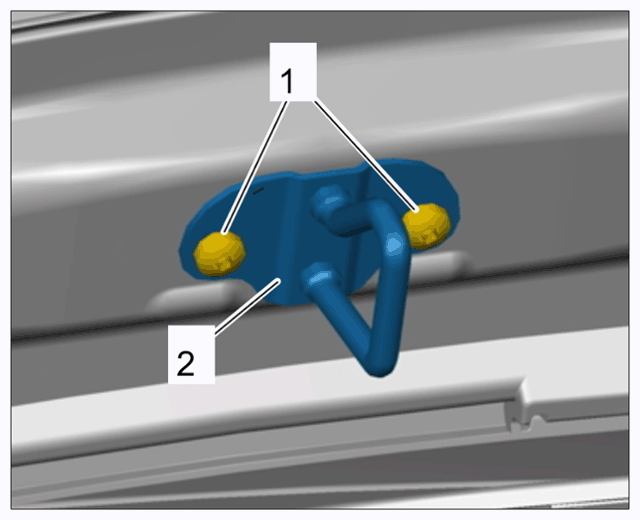

Fastening screws on lower part of rear lid lock	Item 1	Tightening torque	10 Nm (7.5 lb.ft)

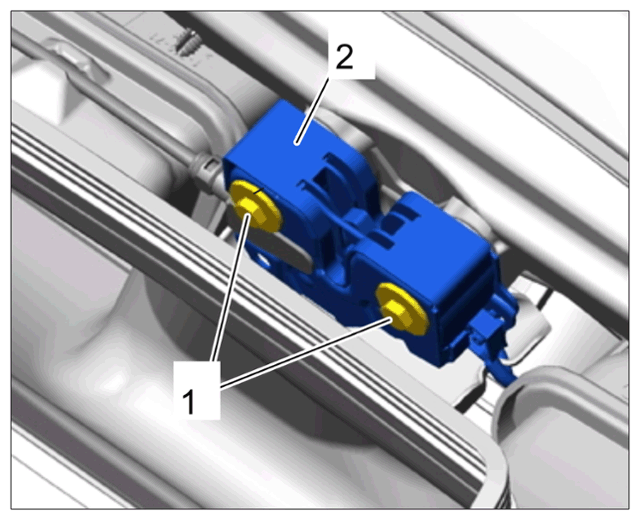

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of lid lock at rear
Fastening screws on upper part of lid lock	Item 1	Tightening torque	10 Nm (7.5 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear upper part of lid lock

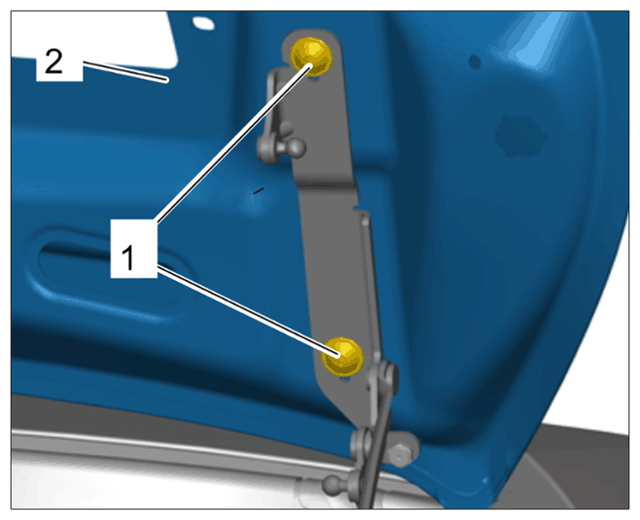

Fastening screw securing hinge to rear lid	Item 1	Tightening torque	10 Nm (7.5 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid in X and Y direction

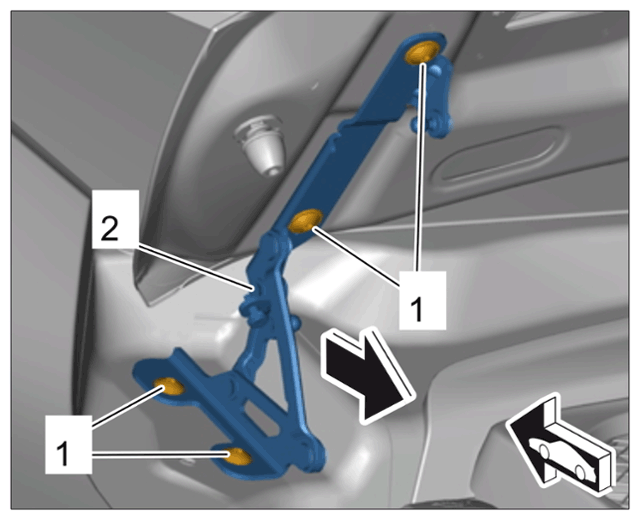

Fastening screws on rear lid hinge	Item 1	Tightening torque	10 Nm (7.5 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge

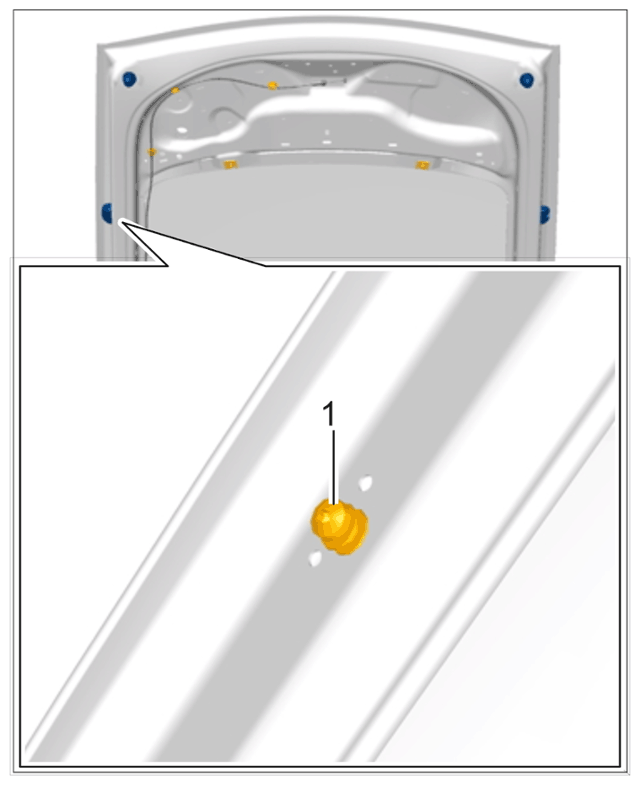

Lid adjusting element	Item 1	Adjustment value	2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid in Z direction

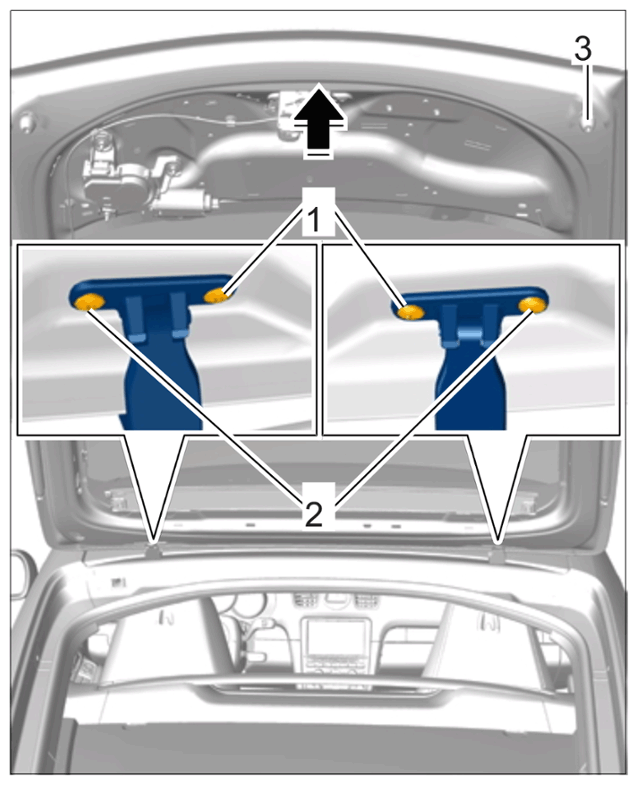

Fastening screws securing lid hinge to lid	Item 1 + 2	Tightening torque	10 Nm (7.5 lb.ft)

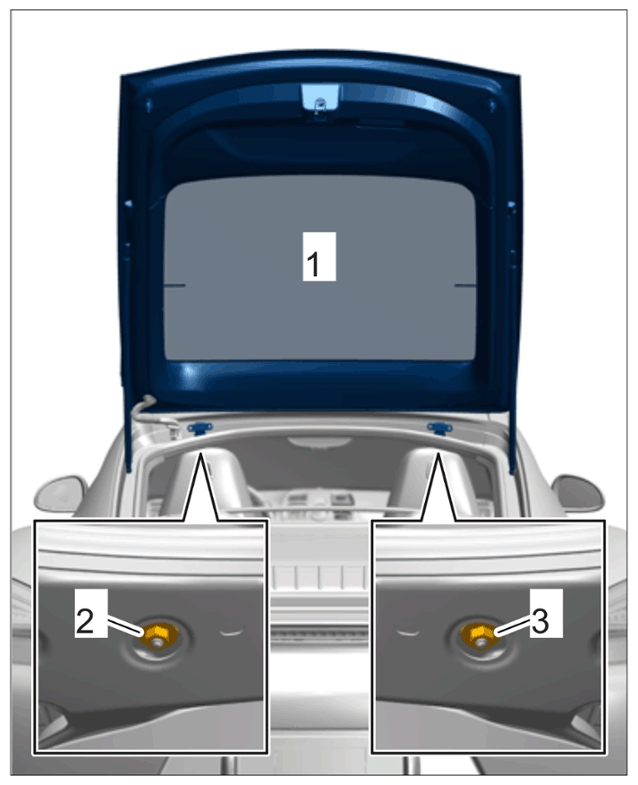

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear lid
Fastening screw securing lid hinge to body shell	Item 2 + 3	Tightening torque	23 Nm (17 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge

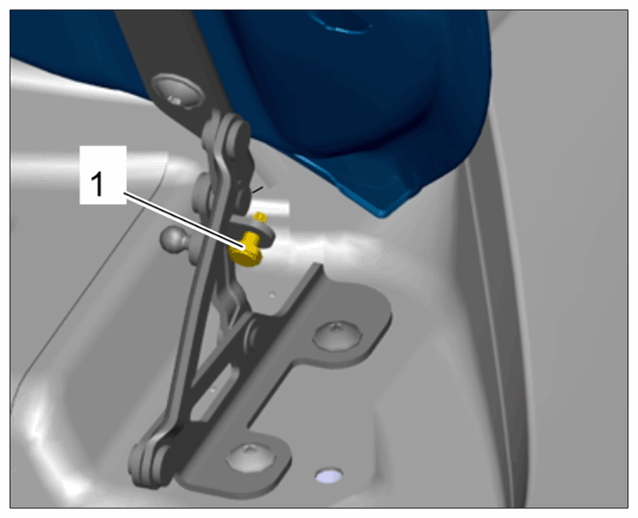

Ball pin to rear lid	Item 1	Tightening torque	23 Nm (17 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing ball pin for gas-filled shock absorber

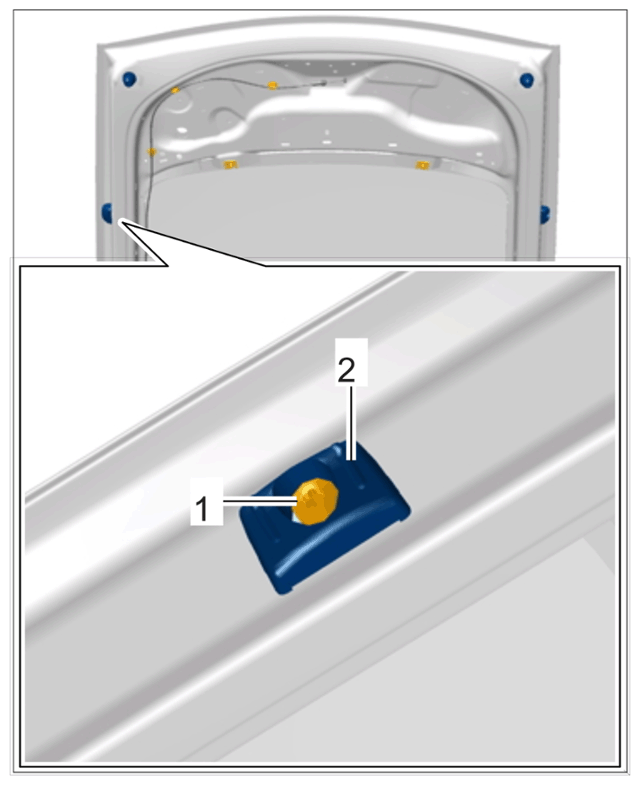

Fastening screw on base plate for lid	Item 1	Tightening torque	10 Nm (7.5 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing base plate

Technical values
