Technical Values: Overview

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing wheel housing liner to body Item 2 Tightening torque 3 Nm (2 lb.ft)
G14268595Courtesy of PORSCHE CARS NORTH AMERICA, INC.

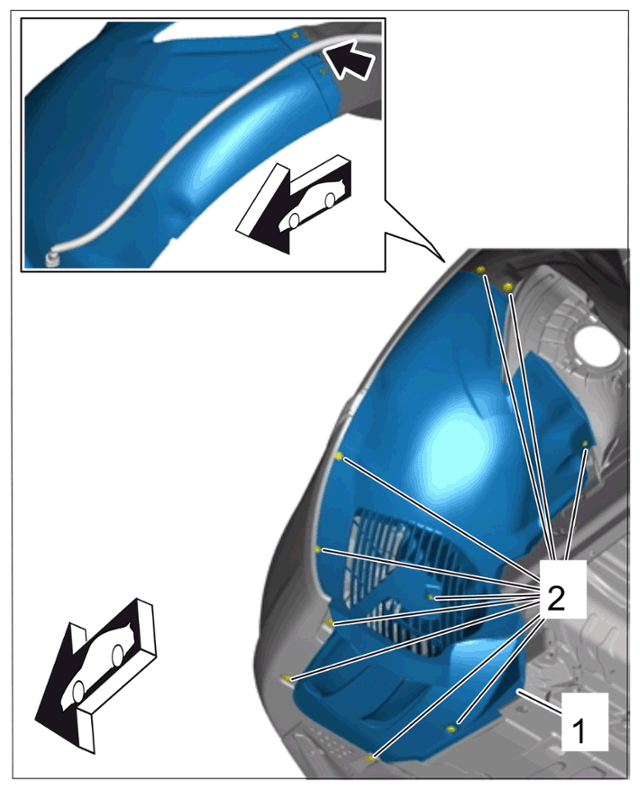

Removing front wheel housing liner - front part
Fastening screw securing wheel housing liner to body Item 2 Tightening torque 3 Nm (2 lb.ft)
G14268596Courtesy of PORSCHE CARS NORTH AMERICA, INC.

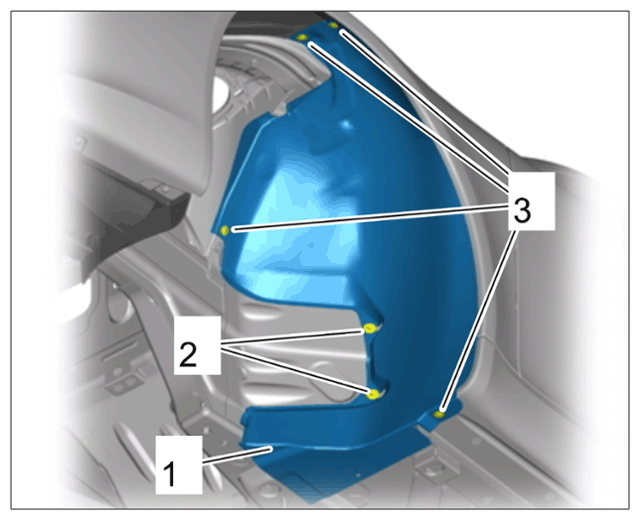

Removing front wheel housing liner - rear part
Fastening nuts securing wheel housing liner to body Item 3 Tightening torque 3 Nm (2 lb.ft)
G14268597Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front wheel housing liner - rear part
Fastening screws securing underbody cover to body Item 2 Tightening torque 3 Nm (2 lb.ft)
G14268598Courtesy of PORSCHE CARS NORTH AMERICA, INC.

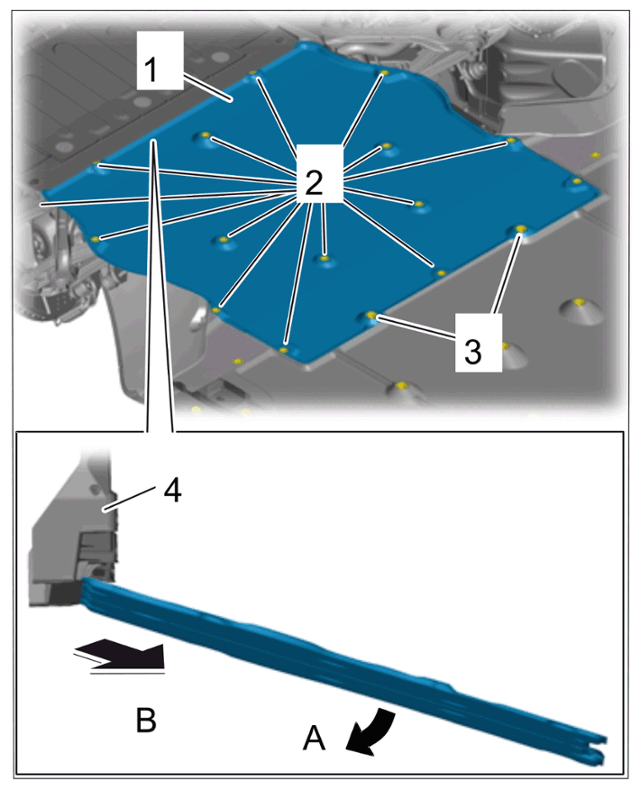

Removing cover for front underbody
Fastening nuts securing underbody cover to body Item 3 Tightening torque 3 Nm (2 lb.ft)
G14268599Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover for front underbody

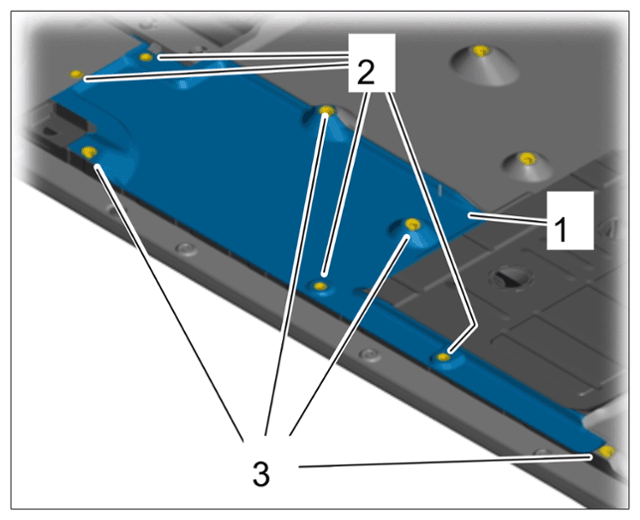

Fastening screws securing underbody cover to body Item 2 Tightening torque 3 Nm (2 lb.ft)
G14268600Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side cover
Fastening nuts securing underbody cover to body Item 3 Tightening torque 3 Nm (2 lb.ft)
G14268601Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side cover
Fastening screws securing underbody cover to body Item 2 Tightening torque 3 Nm (2 lb.ft)
G14268602Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing middle cover
Fastening nuts securing underbody cover to body Item 3 Tightening torque 3 Nm (2 lb.ft)

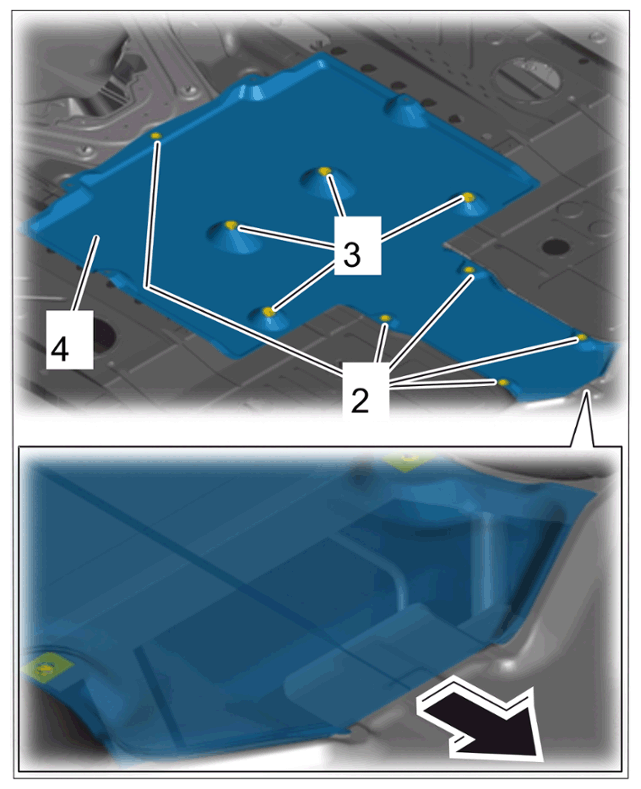

G14268603Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing middle cover
Fastening screws securing underbody cover to body Item 2 Tightening torque 3 Nm (2 lb.ft)
G14268604Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear underbody panelling
Fastening nuts securing underbody cover to body Item 3 Tightening torque 3 Nm (2 lb.ft)
G14268605Courtesy of PORSCHE CARS NORTH AMERICA, INC.

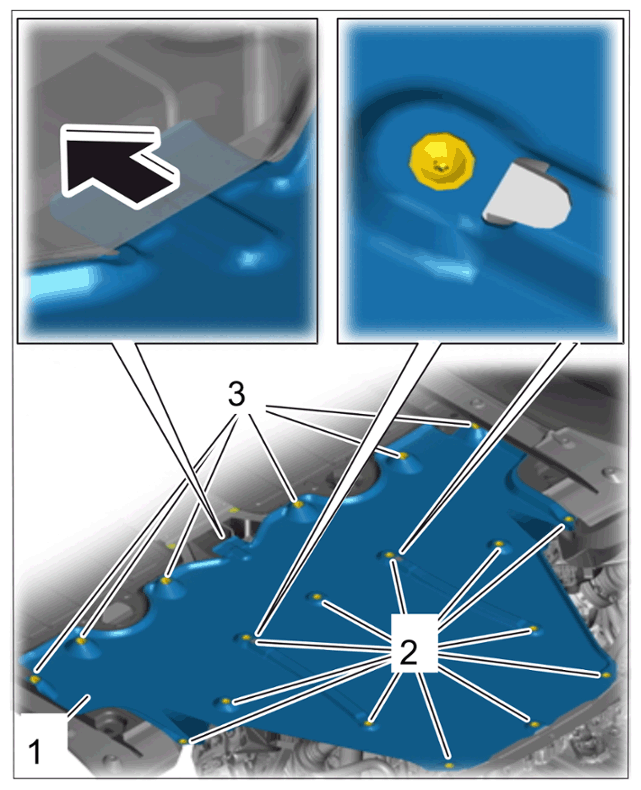

Removing rear underbody panelling

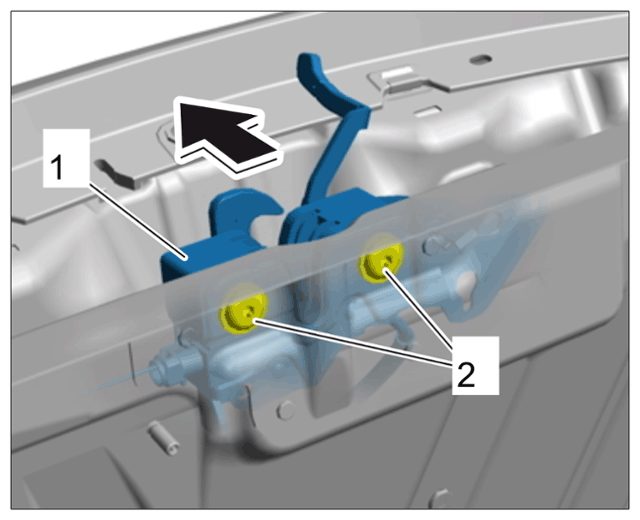

Fastening screws on lower part of front lid lock Item 2 Tightening torque 10 Nm (7.5 lb.ft)
G14268606Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lower part of lid lock

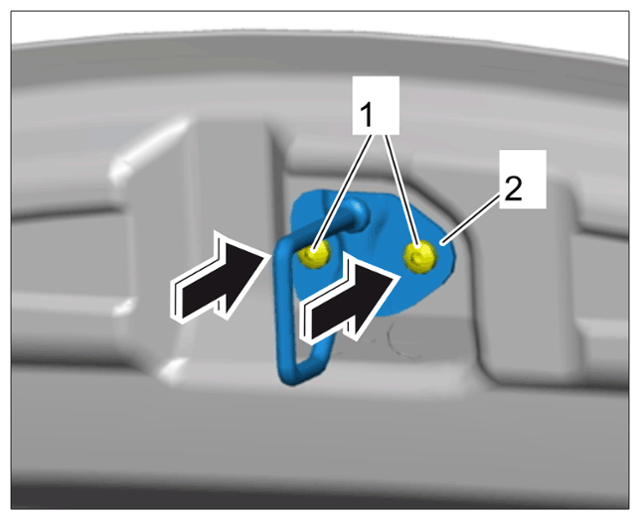

Fastening screws on upper part offrant lid lock Item 1 Tightening torque 10 Nm (7.5 lb.ft)
G14268607Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting lower part of lid lock

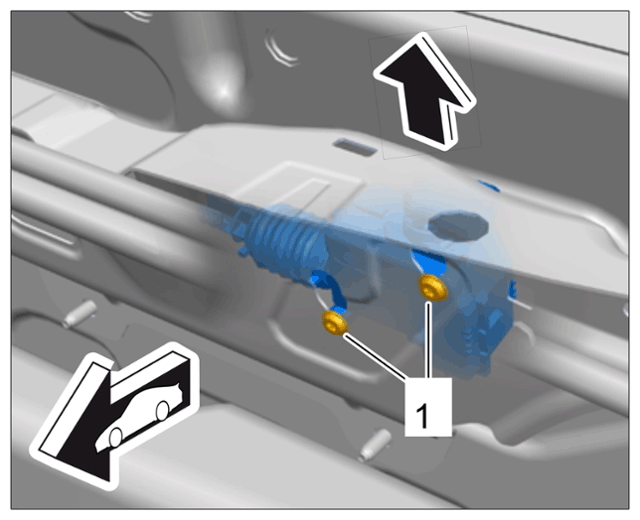

Fastening screws for servo motor for emergency release Item 1 Tightening torque 2.5 Nm (2 lb.ft)
G14268608Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing servo motor for emergency release
Fastening nut securing lid to hinge Item 2 Tightening torque 10 Nm (7.5 lb.ft)
G14268609Courtesy of PORSCHE CARS NORTH AMERICA, INC.

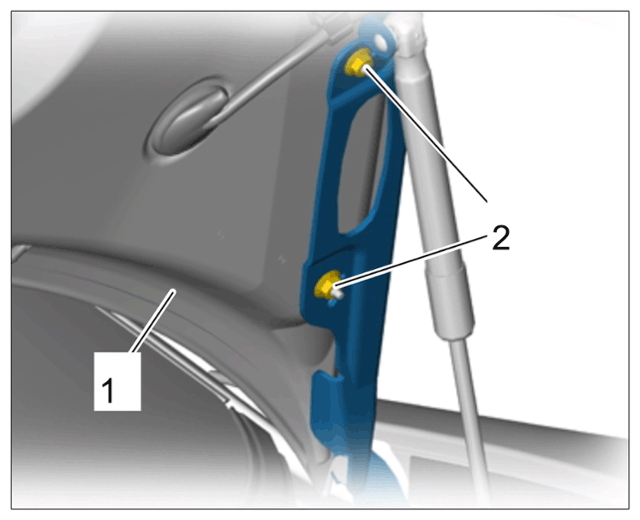

Removing front lid
Fastening screws for lid hinge   Tightening torque 10 Nm (7.5 lb.ft)
G14268610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

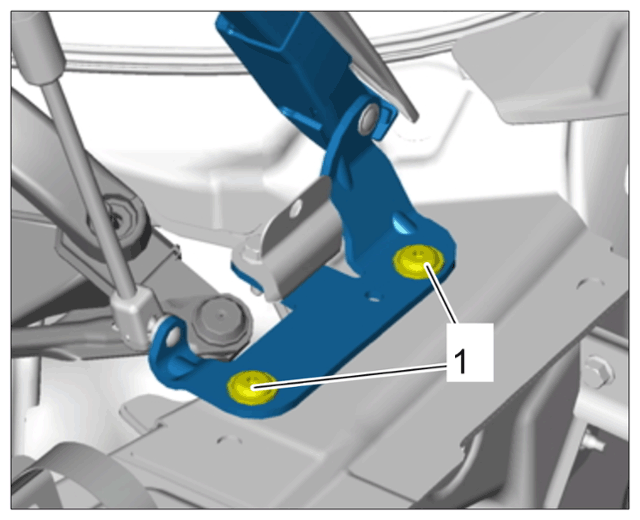

Installing front lid hinge
Fastening screw securing retaining bracket to rear spoiler Item 1 Tightening torque 10 Nm (7.5 lb.ft)
G14268611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

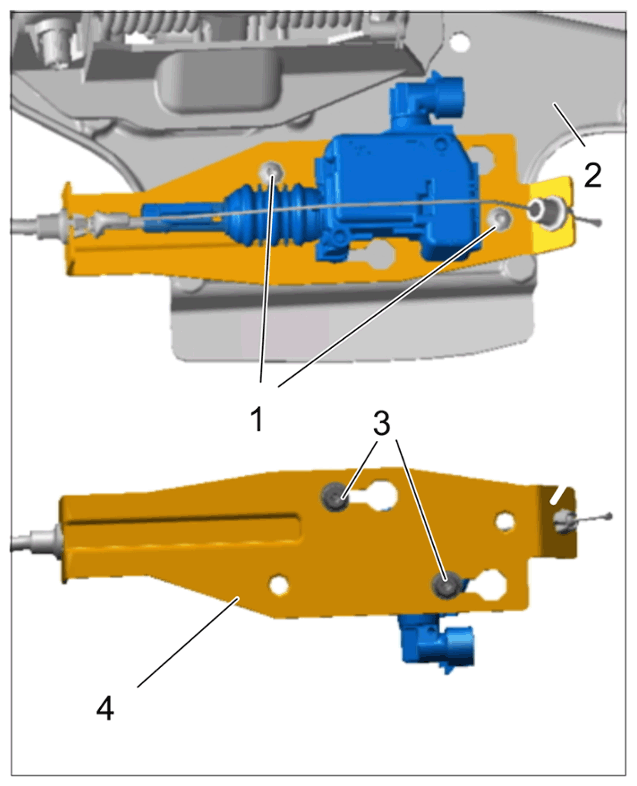

Removing holder for lid release motor
Fastening screw securing rear lid release motor to retaining bracket Item 3 Tightening torque 2.5 Nm (2 lb.ft)
G14268612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing holder for lid release motor
Fastening screws on lower part of rear lid lock Item 1 Tightening torque 10 Nm (7.5 lb.ft)
G14268613Courtesy of PORSCHE CARS NORTH AMERICA, INC.

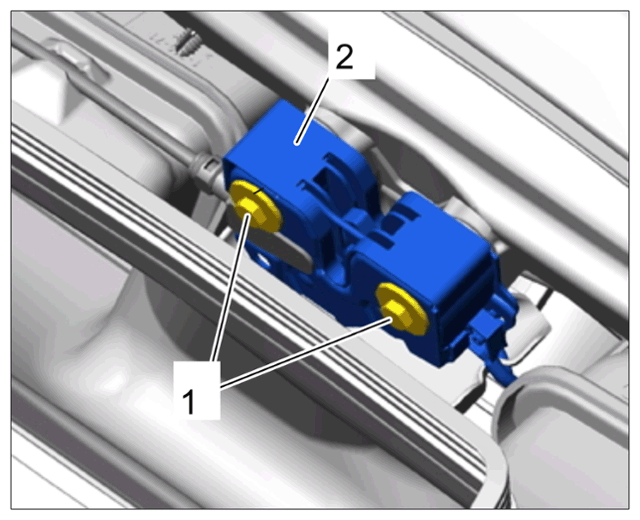

Removing lower part of lid lock at rear
Fastening screws on upper part of lid lock Item 1 Tightening torque 10 Nm (7.5 lb.ft)
G14268614Courtesy of PORSCHE CARS NORTH AMERICA, INC.

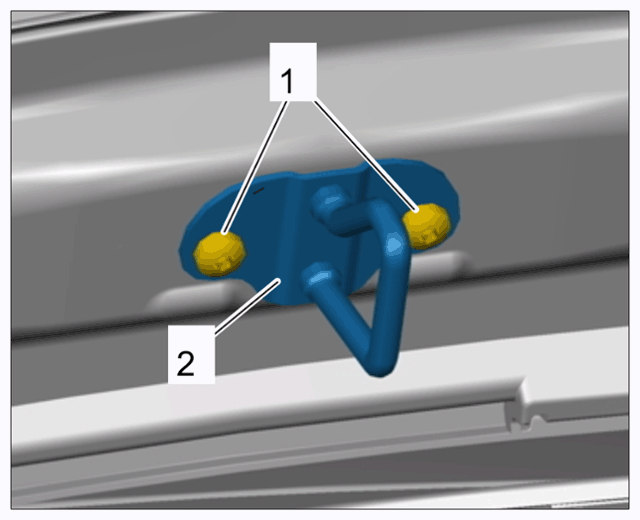

Removing rear upper part of lid lock
Fastening screw securing hinge to rear lid Item 1 Tightening torque 10 Nm (7.5 lb.ft)
G14268615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

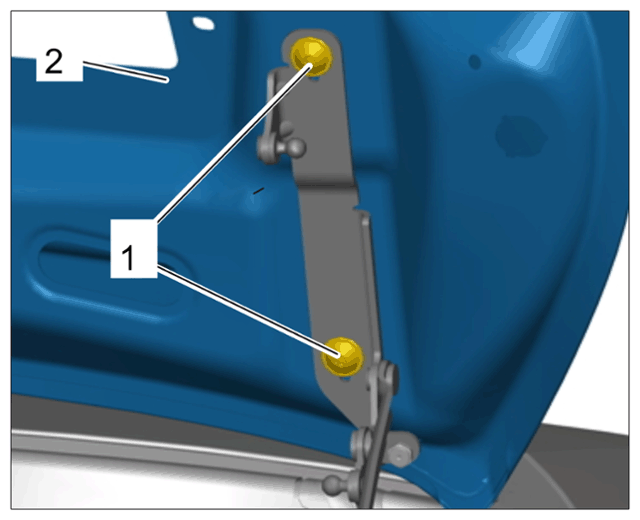

Adjusting rear lid in X and Y direction
Fastening screws on rear lid hinge Item 1 Tightening torque 10 Nm (7.5 lb.ft)
G14268616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

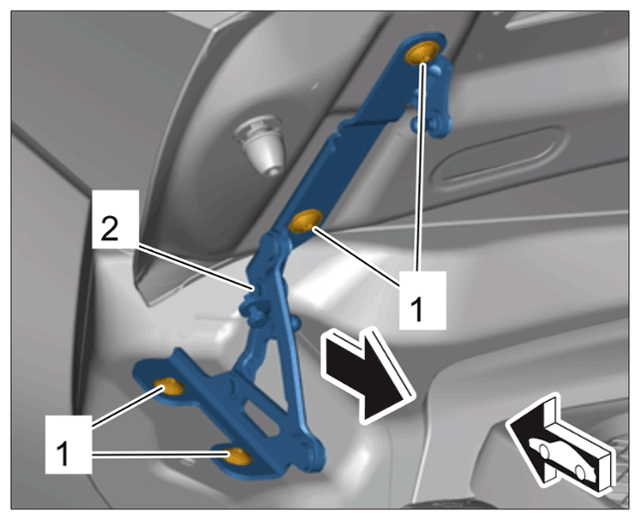

Removing lid hinge
Lid adjusting element Item 1 Adjustment value 2 mm
G14268617Courtesy of PORSCHE CARS NORTH AMERICA, INC.

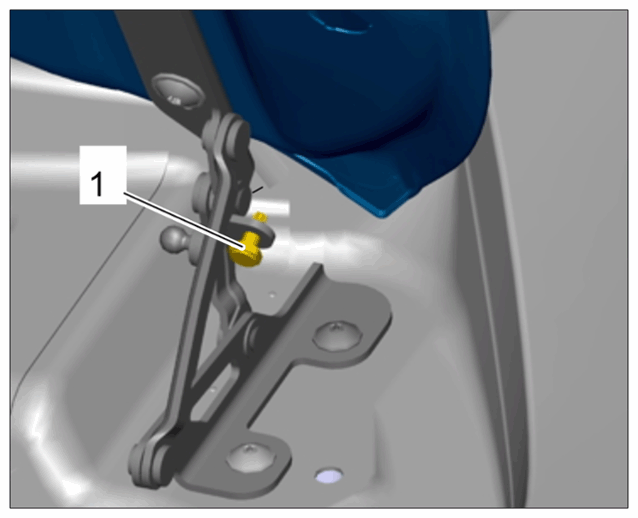

Adjusting rear lid in Z direction

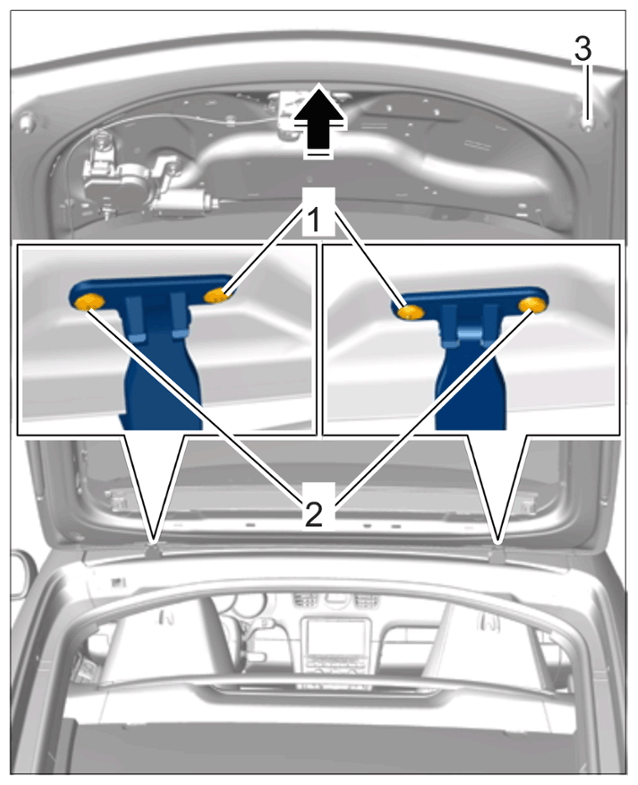

Fastening screws securing lid hinge to lid Item 1 + 2 Tightening torque 10 Nm (7.5 lb.ft)
G14268618Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear lid
Fastening screw securing lid hinge to body shell Item 2 + 3 Tightening torque 23 Nm (17 lb.ft)
G14268619Courtesy of PORSCHE CARS NORTH AMERICA, INC.

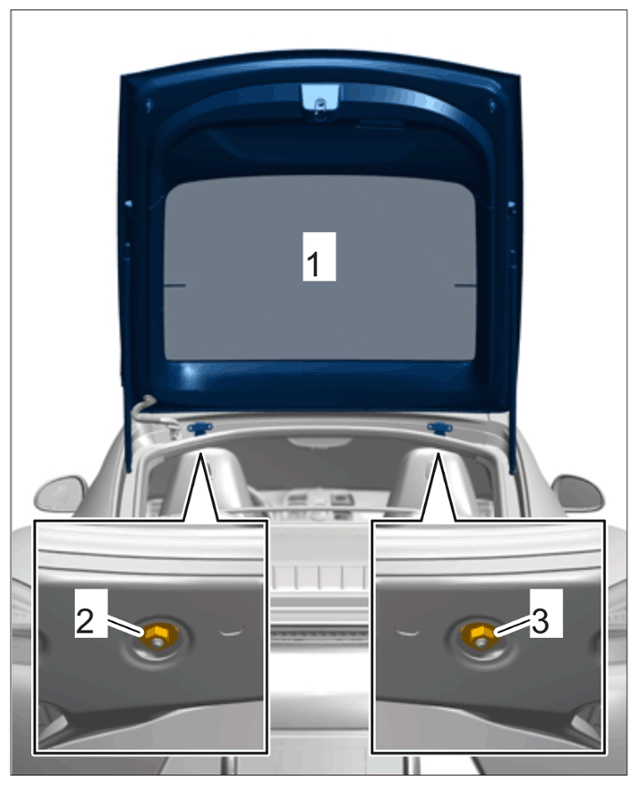

Removing lid hinge
Ball pin to rear lid Item 1 Tightening torque 23 Nm (17 lb.ft)
G14268620Courtesy of PORSCHE CARS NORTH AMERICA, INC.

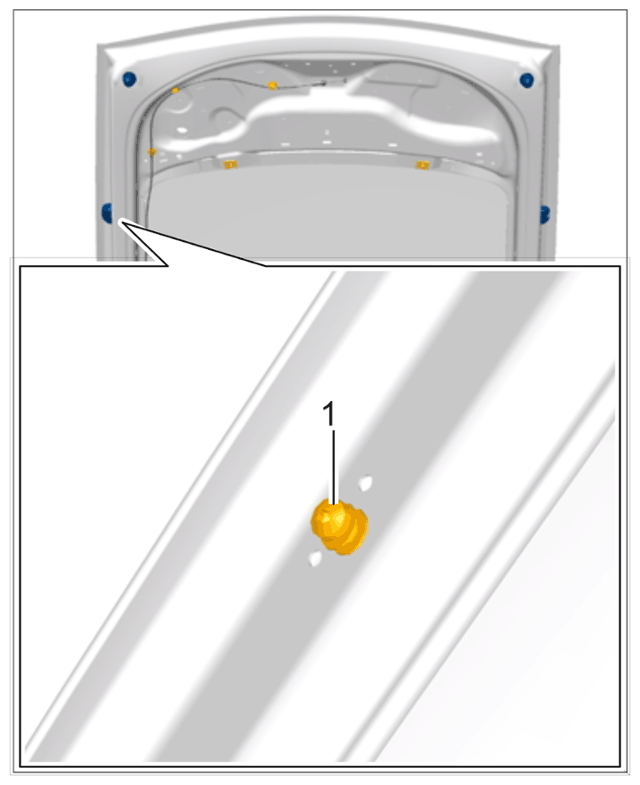

Removing ball pin for gas-filled shock absorber

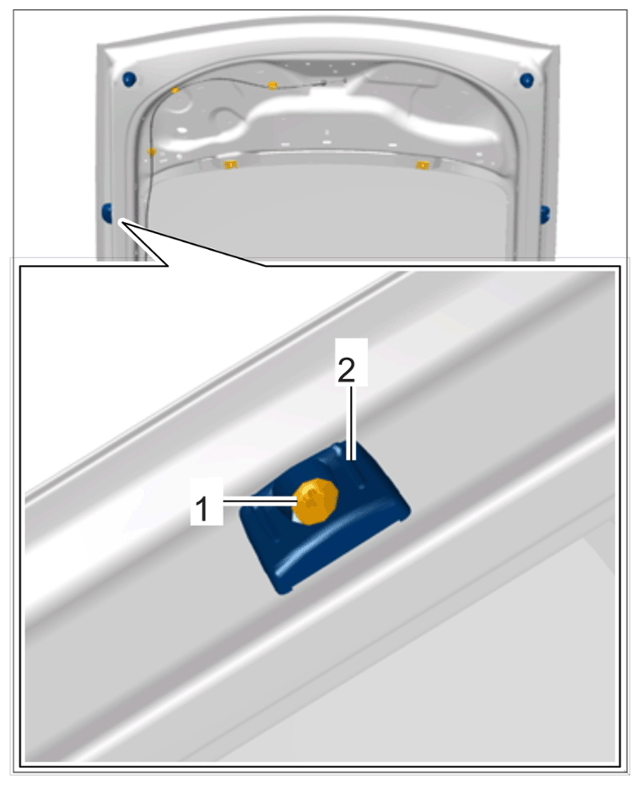

Fastening screw on base plate for lid Item 1 Tightening torque 10 Nm (7.5 lb.ft)
G14268621Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing base plate

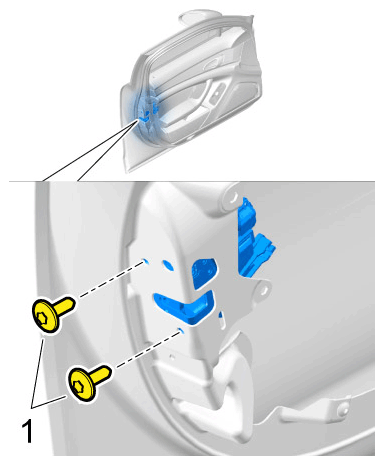

Door lock mounting Item 1 Tightening torque 20 Nm (15 lb.ft)
G14268622Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws on door lock

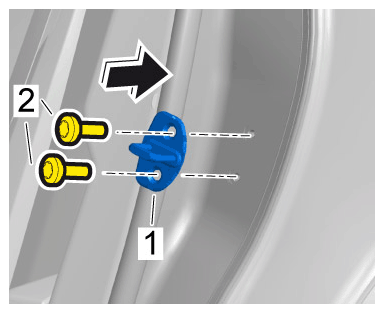

Fastening screws for lock peg Item 2 Tightening torque 25 Nm (19 lb.ft)
G14268623Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for lock peg
Fastening screws for door opener   Tightening torque 2 Nm (1.5 lb.ft)
G14268624Courtesy of PORSCHE CARS NORTH AMERICA, INC.

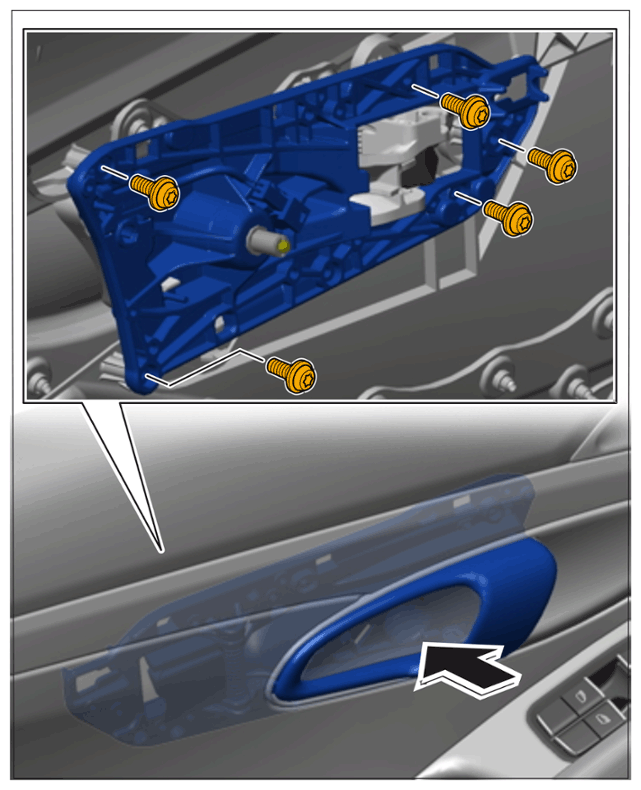

Fastening screws for door opener

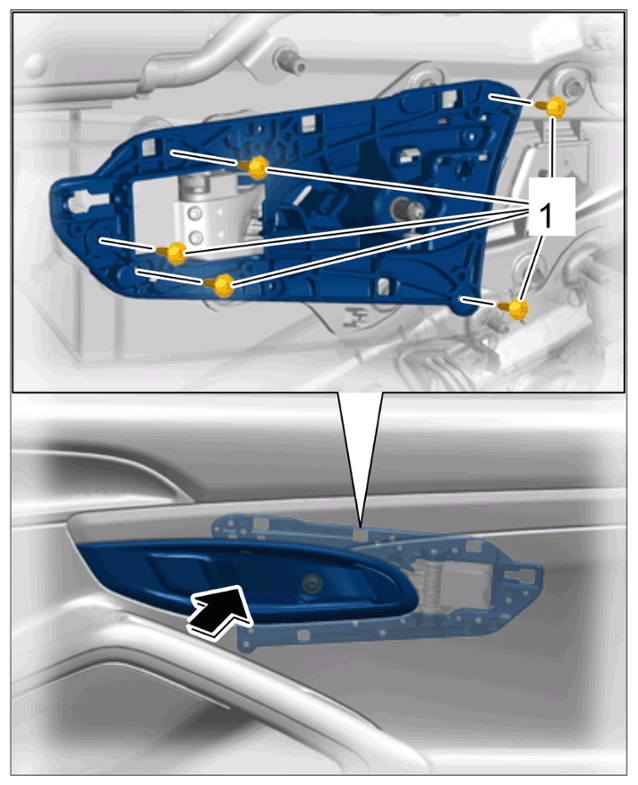

Fastening screws for door opener   Tightening torque 2 Nm (1.5 lb.ft)
G14268625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing door opener
Fastening screw for door hinge   Tightening torque 25 Nm (19 lb.ft)
G14268626Courtesy of PORSCHE CARS NORTH AMERICA, INC.

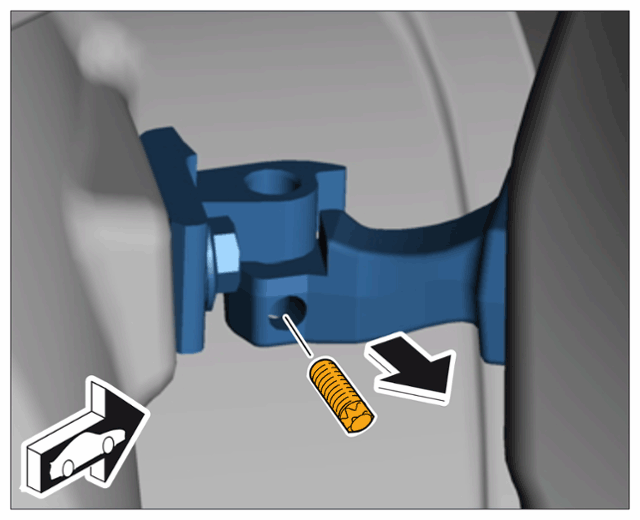

Loosening hinge joint

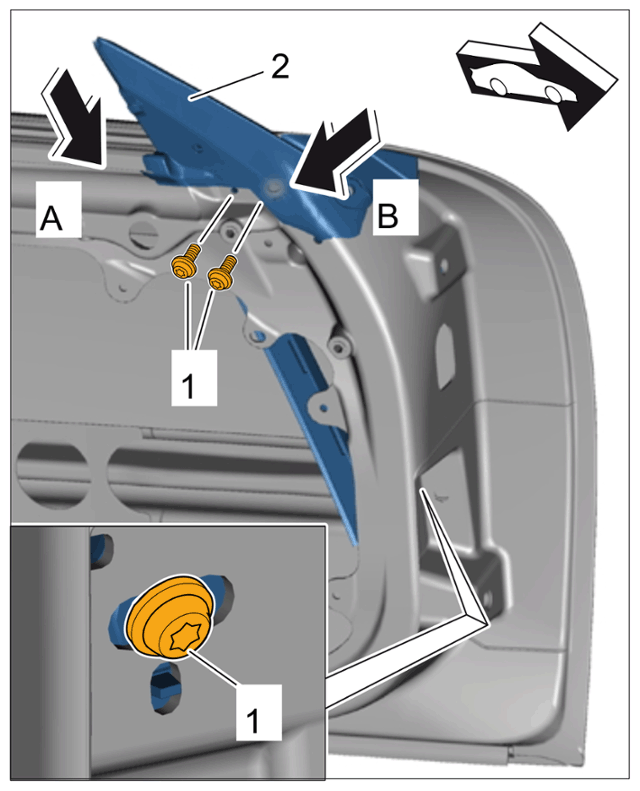

Fastening screws securing window guide to door Item 1 Tightening torque 10 Nm (7.5 lb.ft)
G14268627Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for window guide

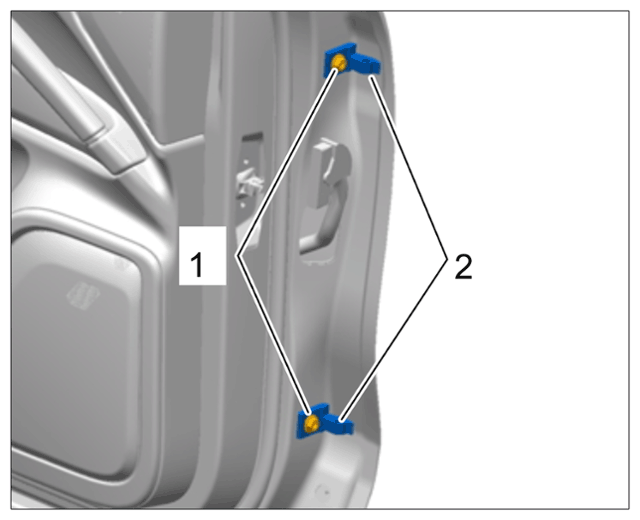

Fastening screw securing door hinge to door Item 1 Tightening torque 25 Nm (19 lb.ft)
G14268628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door hinge
Fastening screw securing door arrester to body shell   Tightening torque 35 Nm (26 lb.ft)
G14268629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

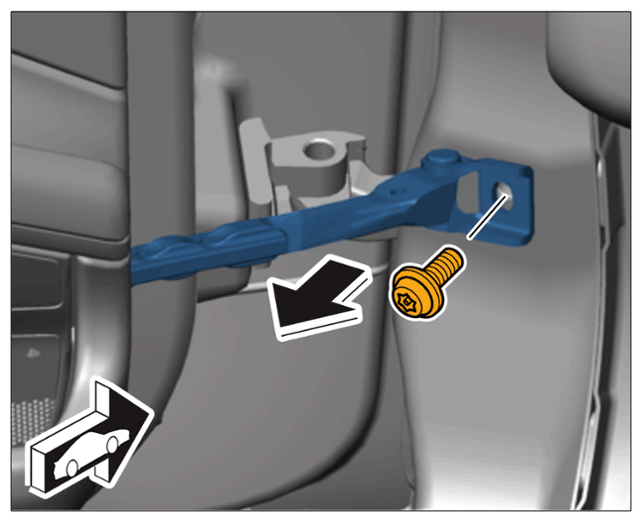

Fastening screw for door arrester
Fastening nut securing door arrester to door   Tightening torque 35 Nm (26 lb.ft)
G14268630Courtesy of PORSCHE CARS NORTH AMERICA, INC.

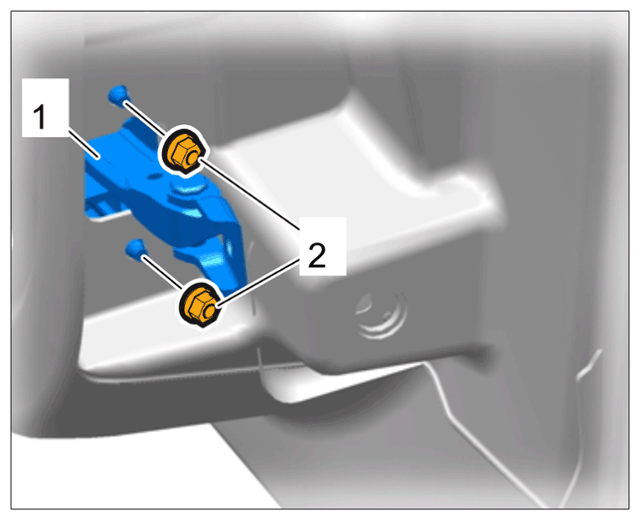

Removing door arrester
Fastening screw for door panel   Tightening torque 7.5 Nm (5.5 lb.ft) +/- 0.5 Nm (0.5 lb.ft)

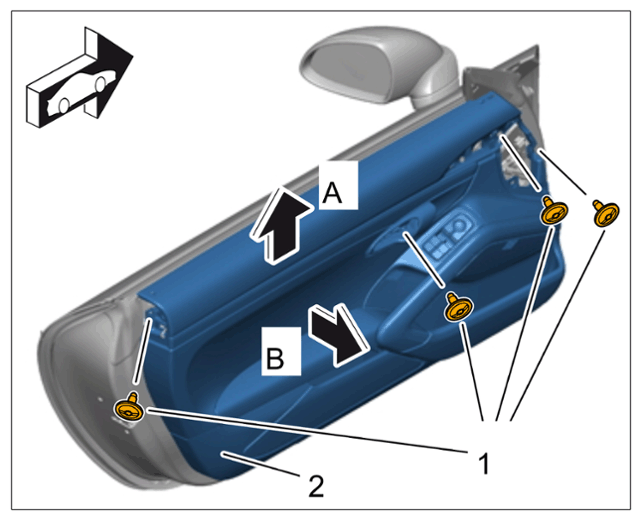

G14268631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door panel mounting

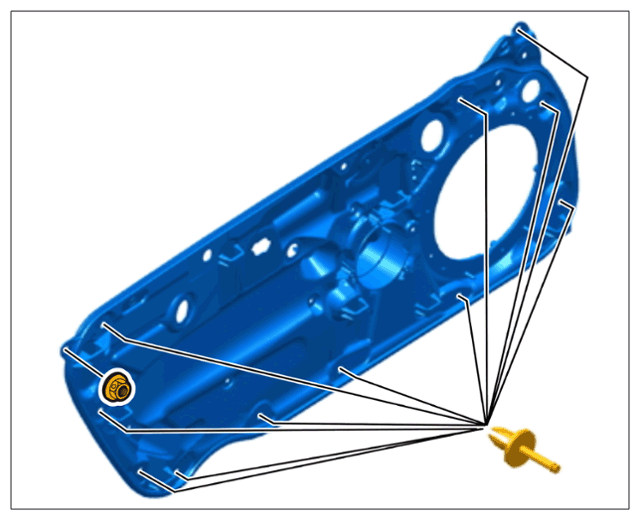

Fastening nut on door sub-frame   Tightening torque 3 Nm (2 lb.ft)
G14268632Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut on door sub-frame
Door handle mounting   Tightening torque 6 Nm (4.5 lb.ft)
G14268633Courtesy of PORSCHE CARS NORTH AMERICA, INC.

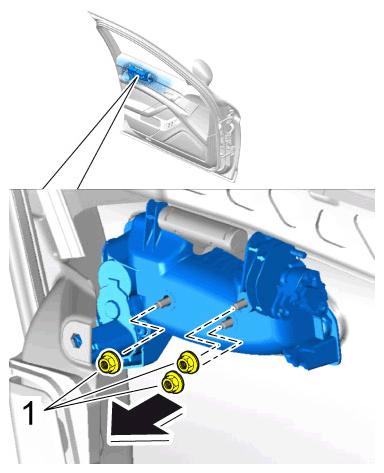

Fastening nuts for door handle
Fastening screw securing door arrester to body   Tightening torque 35 Nm (26 lb.ft)
G14268634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

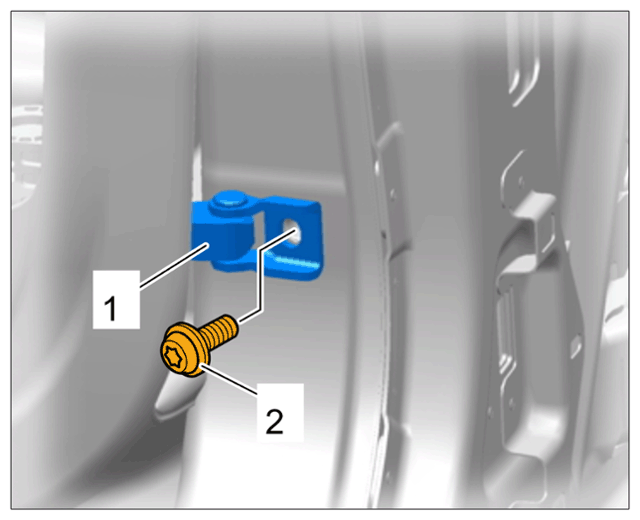

Loosening door arrester on body side
Fastening nut securing door arrester to doo r Tightening torque 10 Nm (7.5 lb.ft)
G14268635Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing door arrester

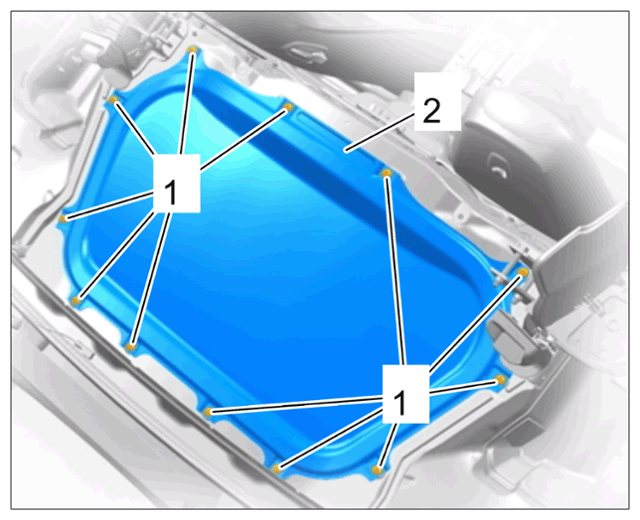

Fastening screws securing engine compartment lid   Tightening torque 13 Nm (9.5 lb.ft)
G14268636Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing engine compartment lid

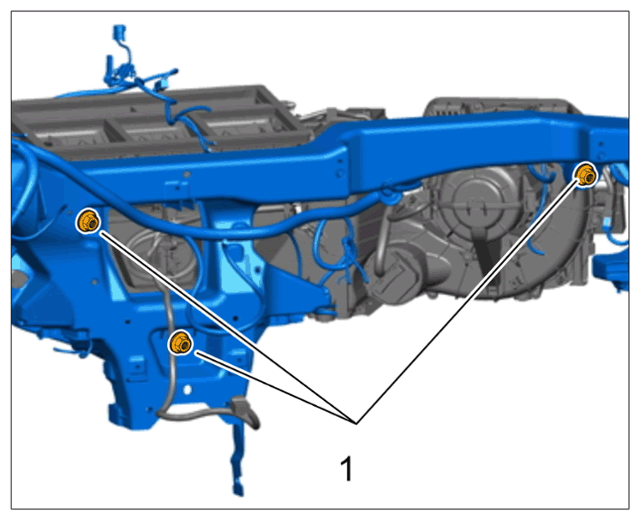

Heating/fresh-air unit to dashboard bracket   Tightening torque 8 Nm (6 lb.ft)
G14268637Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts for heating/fresh-air unit
Fastening nut securing dashboard bracket to holder Item 1 Tightening torque 23 Nm (17 lb.ft)
G14268638Courtesy of PORSCHE CARS NORTH AMERICA, INC.

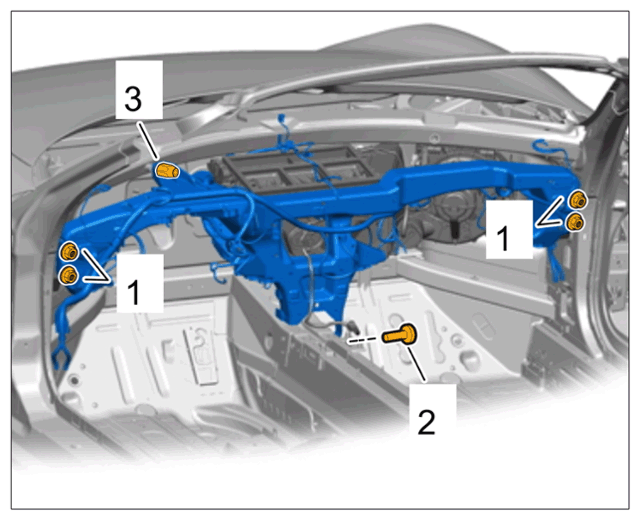

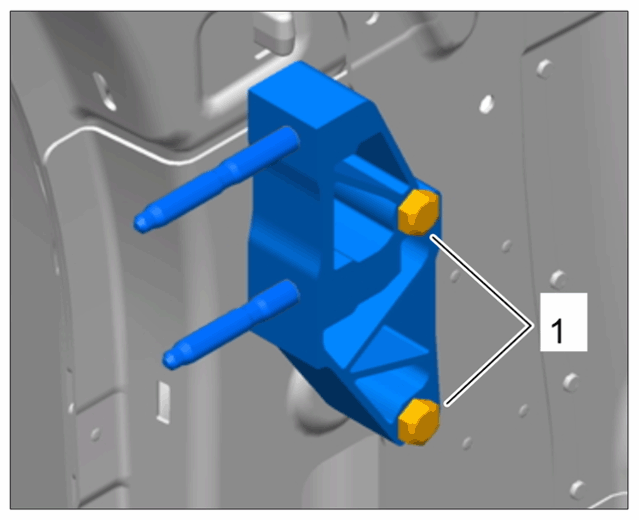

Mounting for dashboard bracket
Fastening screw securing dashboard bracket to tunnel Item 2 Tightening torque 23 Nm (17 lb.ft)
Fastening screw securing dashboard bracket to firewall Item 3 Tightening torque 23 Nm (17 lb.ft)
Fastening screw securing holder for dashboard bracket to body   Tightening torque 23 Nm (17 lb.ft)
G14268639Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for holder for dashboard bracket
Fastening nuts securing bracket to body   Tightening torque 10 Nm (7.5 lb.ft)
Fastening screws securing wing to body   Tightening torque 10 Nm (7.5 lb.ft)
