Lid Lock

Location	Description	Type	Basic value
Fastening screws on lower part of front lid lock	Item 2	Tightening torque	10 Nm (7.5 lb.ft)

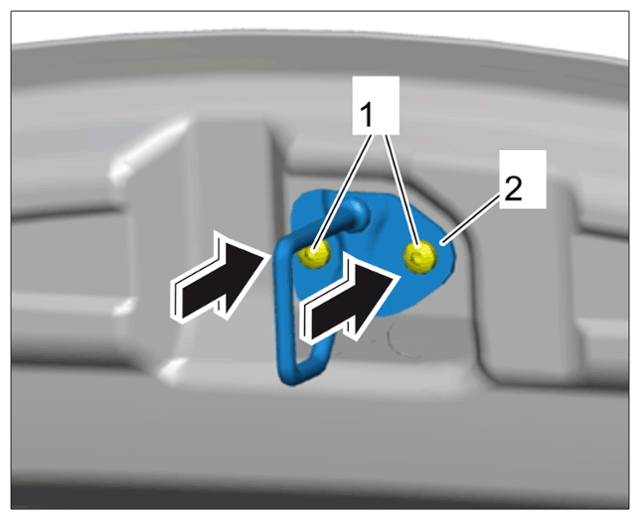

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of lid lock
Fastening screws on upper part of front lid lock	Item 1	Tightening torque	10 Nm (7.5 lb.ft)

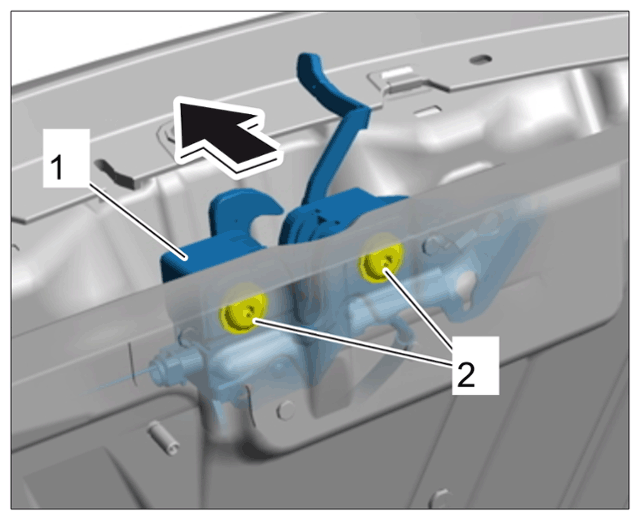

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting lower part of lid lock
Fastening screws for servo motor for emergency release	Item 1	Tightening torque	2.5 Nm (2 lb.ft)

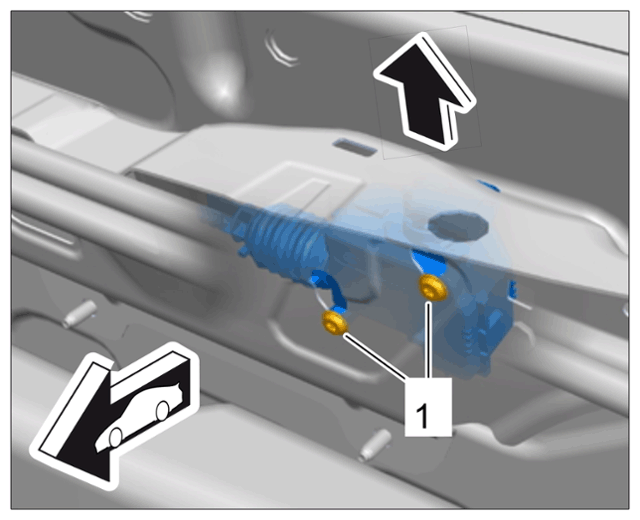

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing servo motor for emergency release

Technical values
