5X - Body - General - BOXSTER & CAYMAN
>>
WM, 5X00IN40 Technical Values
>>
Technical Values
>>
Engine Compartment Lid
Engine Compartment Lid
Location
Description
Type
Basic value
Tolerance
Fastening screws securing engine compartment lid
Tightening torque
13 Nm (9.5 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

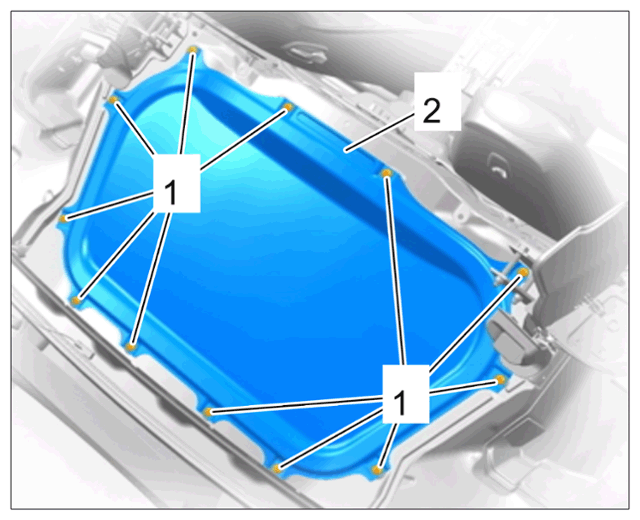

Installing engine compartment lid
