Technical Values: Door

Location	Description	Type	Basic value	Tolerance
Door lock mounting	Item 1	Tightening torque	20 Nm (15 lb.ft)

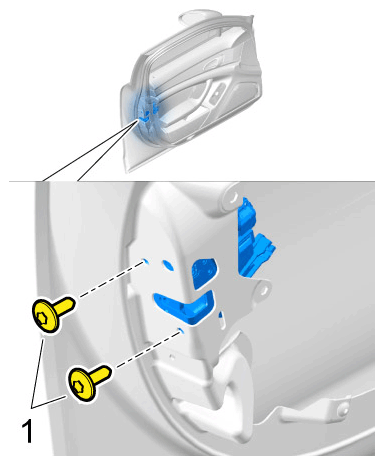

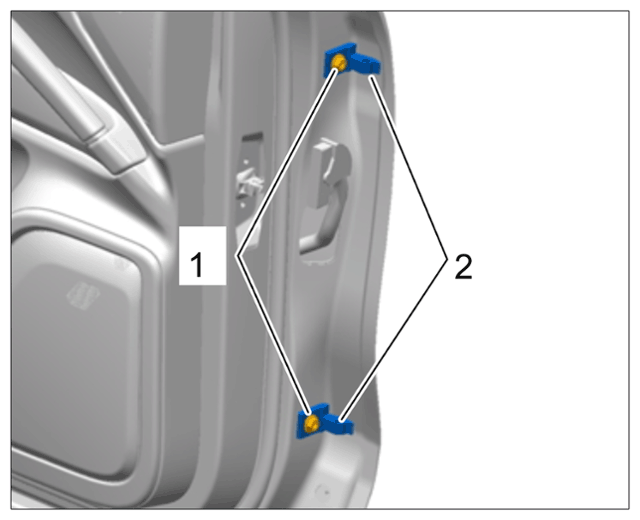

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws on door lock
Fastening screws for lock peg	Item 2	Tightening torque	25 Nm (19 lb.ft)

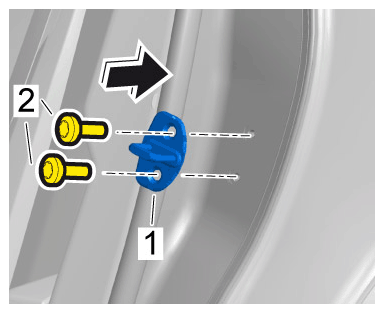

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for lock peg
Fastening screws for door opener		Tightening torque	2 Nm (1.5 lb.ft)

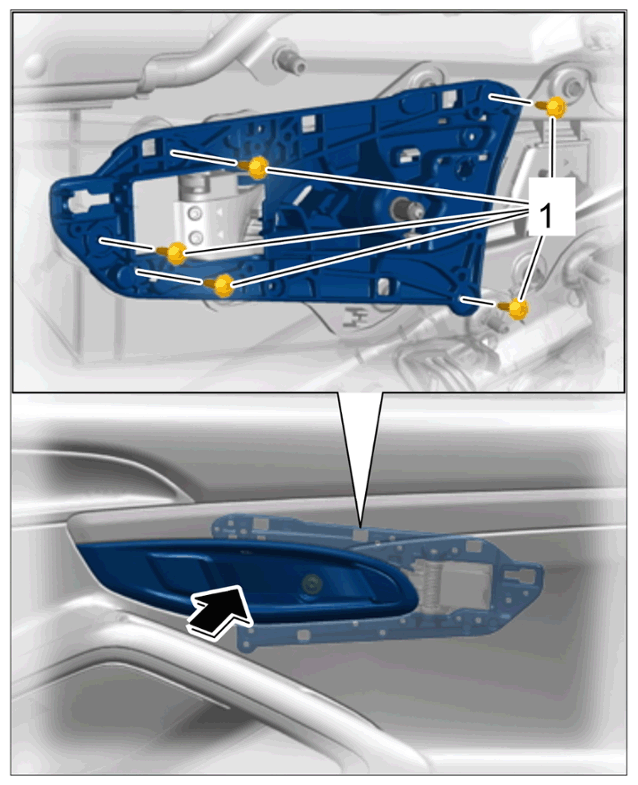

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door opener
Fastening screws for door opener		Tightening torque	2 Nm (1.5 lb.ft)

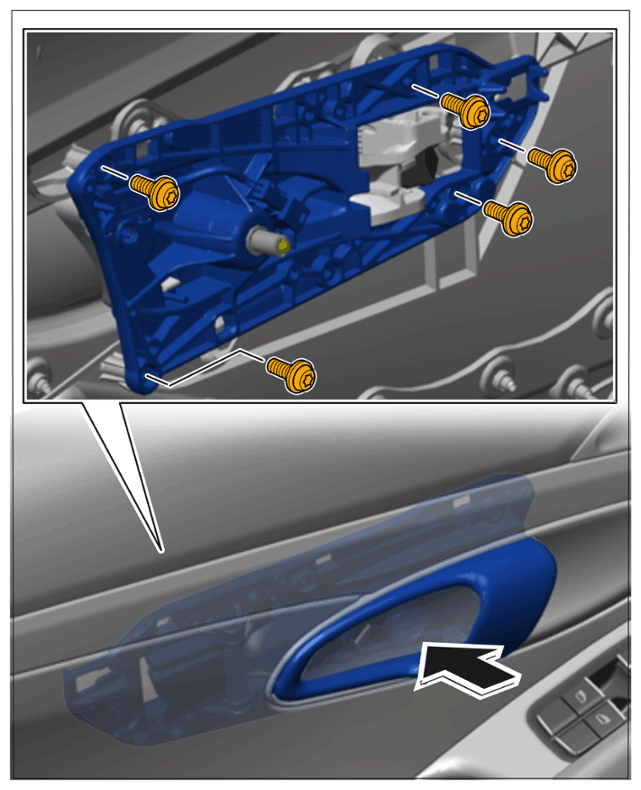

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing door opener
Fastening screw for door hinge		Tightening torque	25 Nm (19 lb.ft)

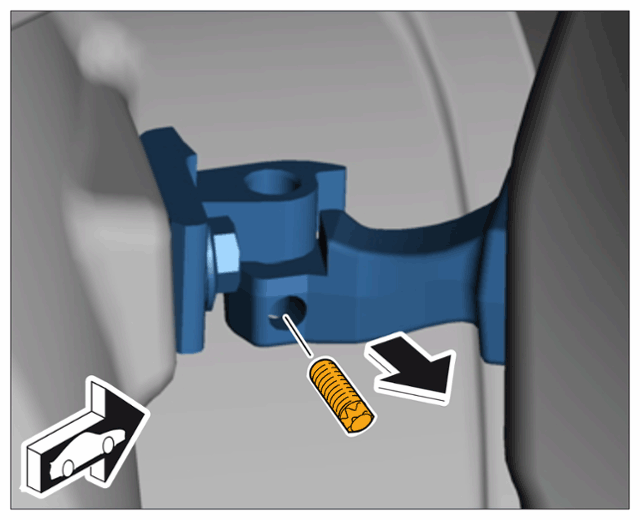

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening hinge joint
Fastening screws securing window guide to door	Item 1	Tightening torque	10 Nm (7.5 lb.ft)

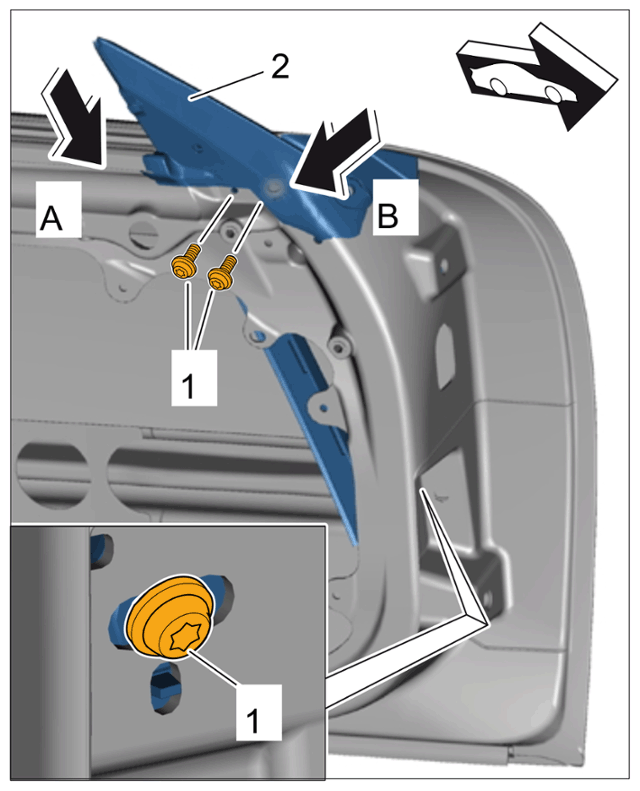

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for window guide
Fastening screw securing door hinge to door	Item 1	Tightening torque	25 Nm (19 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door hinge
Fastening screw securing door arrester to body shell		Tightening torque	35 Nm (26 lb.ft)

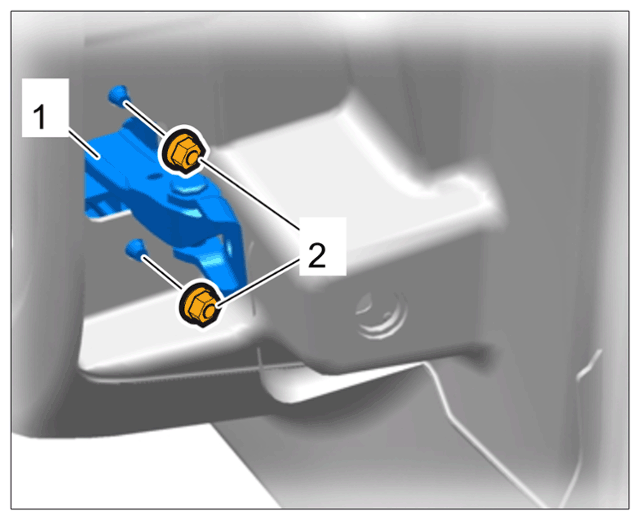

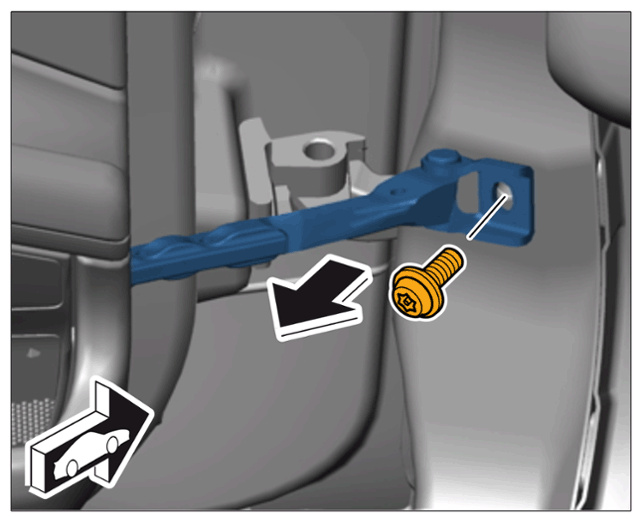

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for door arrester
Fastenina nut securing door arrester to door		Tightening torque	35 Nm (26 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing door arrester
Fastenina screw for door panel		Tightening torque	7.5 Nm (5.5 lb.ft)	+/- 0.5 Nm (0.5 lb.ft)

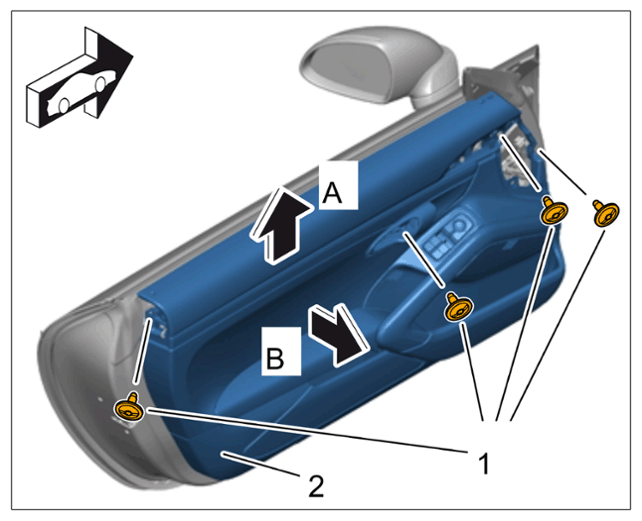

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door panel mounting
Fastening nut on door sub-frame		Tightening torque	3 Nm (2 lb.ft)

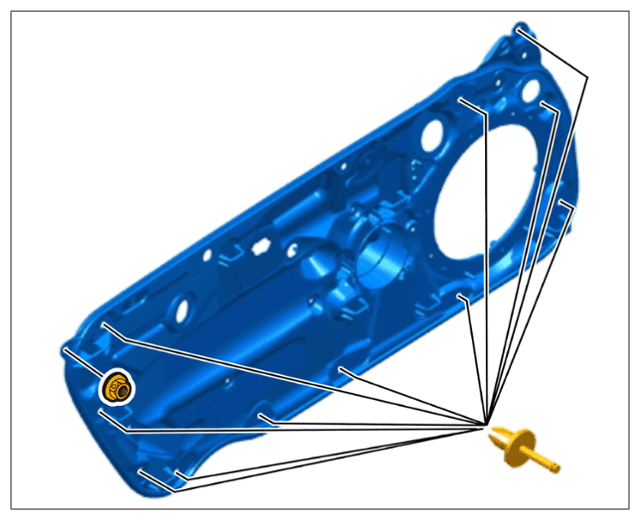

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut on door sub-frame
Door handle mounting		Tightening torque	6 Nm (4.5 lb.ft)

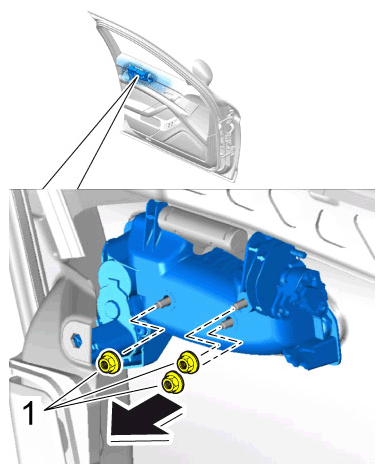

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for door handle
