WM, 5X00IN26 Replacing Coarse Threaded Bolts: Tools

Tool denomination Type Tool number Image

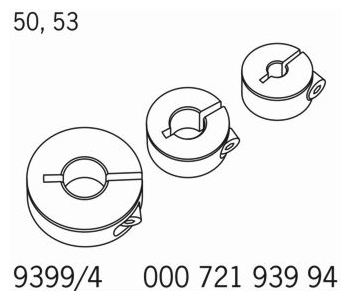

Set of setting collars Special tool > 9399/4
G14268561Courtesy of PORSCHE CARS NORTH AMERICA, INC.

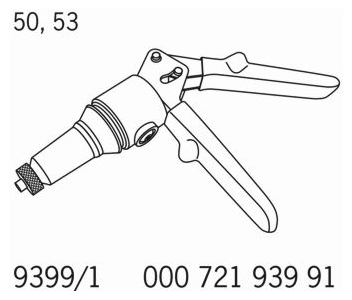

Riveting tool for ground pins Special tool > 9399/1
G14268562Courtesy of PORSCHE CARS NORTH AMERICA, INC.

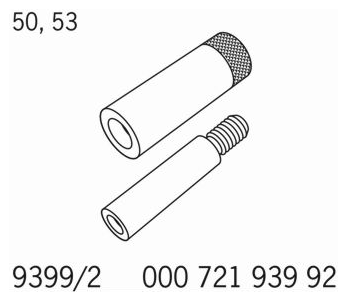

Threaded mandrel + mouth piece Special tool > 9399/2
G14268563Courtesy of PORSCHE CARS NORTH AMERICA, INC.
