WM, 5X00IN26 Replacing Coarse Threaded Bolts
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

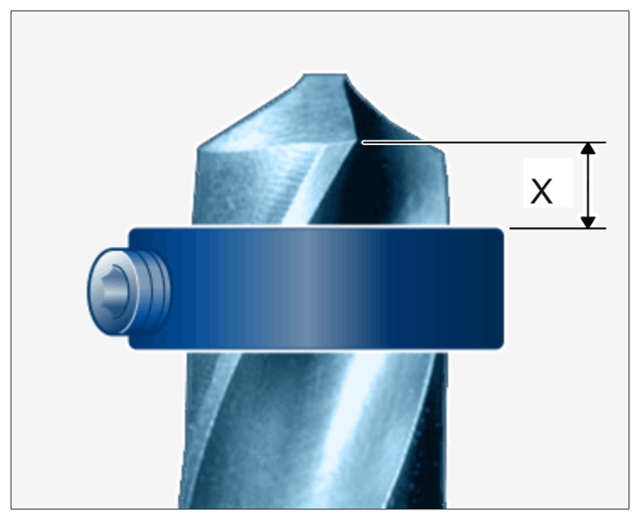

Drilling depth
X
Length
3.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drilling depth
Drill bit
Diameter
4.0 mm
Drill bit
Diameter
7.0 mm
Drill bit
Diameter
9.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
