Removing Cover For Front Underbody

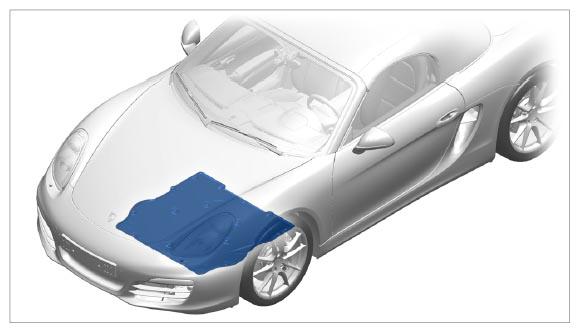

Fig 1: Front Underbody Cover Component Location (All Models)
G10029316Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -2-  and fastening nuts -3-  .

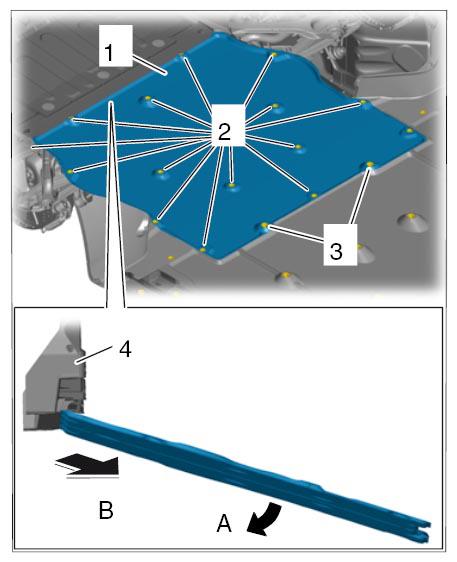

    G10029317Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Swivel cover for front underbody -1-  down -→ A-  and pull it out of the overlap -→ B-  .
  3. Remove cover for front underbody.
