Thread On Threaded Joint For Roll-Over Bar
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

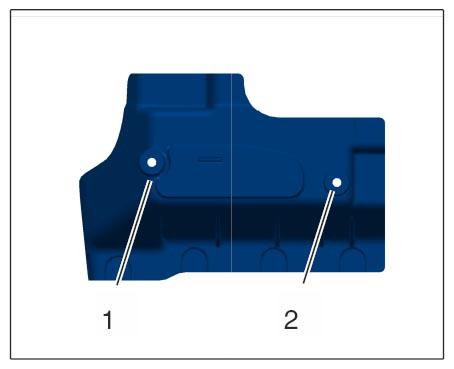

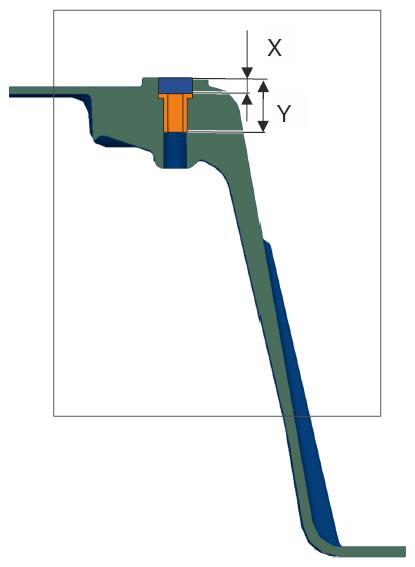

| Thread 1 and 2 | Dimension Y | Length | 30 mm | ||
|
Thread repairs on threaded joint for roll-over bar |
|||||
| Thread 1 and 2 | Dimension X | Length | 10 mm | ||
| Thread repairs on threaded joint for roll-over bar | |||||
- Repair thread → 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR
Use repair kit Time-sert thread repair kit 9394 with threaded bush from repair kit.
