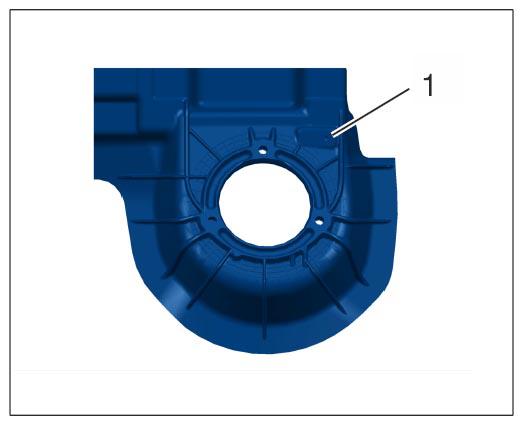

Thread On Rear Spring Strut Mount
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

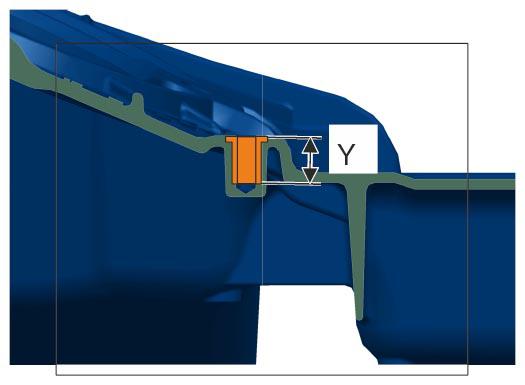

| Thread 1 | Dimension Y | Length | 9.4 mm | ||
|
Thread repairs on spring strut mount |
|||||
- Repair thread → 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR
Use repair kit Time-Sert thread repair kit Nr.122-1 Pos.1 with short threaded bush.
