Thread On Engine Mount

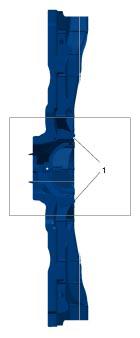

| Thread 1: Engine mount mounting | M10 x 20 |
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

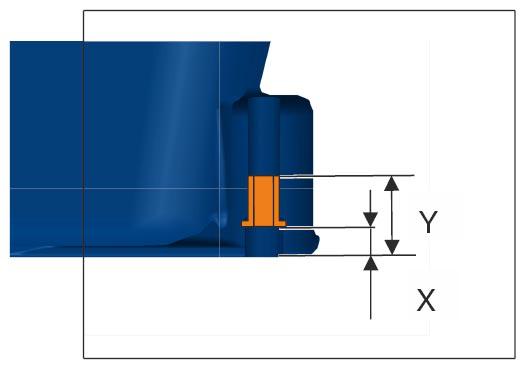

| Thread 1 | Dimension Y | Length | 25 mm | ||
|
Thread repairs for engine mount mounting |
|||||
| Thread 1 | Dimension X | Length | 5 mm | ||
| Thread repairs for engine mount mounting | |||||
- Repair thread → 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR
Use repair kit Time-sert thread repair kit 9394 with threaded bush from repair kit.
