Repairing Spring Strut Mount Thread

Information

• Remove wire thread inserts (Heli-coil) that are installed as standard before drilling out  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

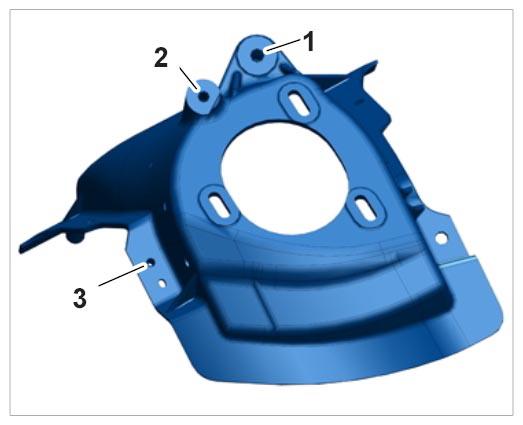

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

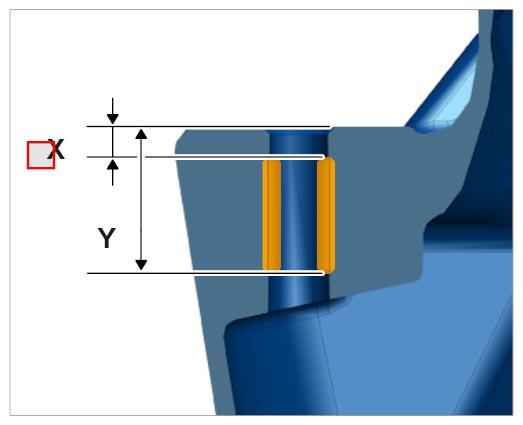

Thread 1	Dimension Y	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

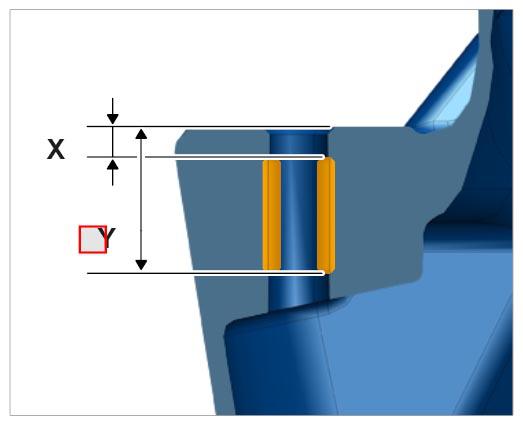

Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

1. Repair thread → 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR

   Use repair kit Thread repair kit 9843/3  with threaded bush → THREADED BUSH 999.504.262.01.

   Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

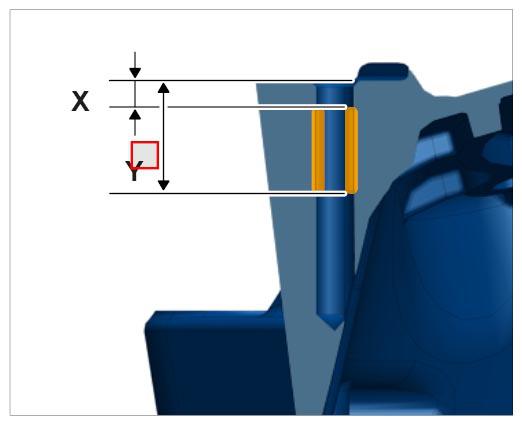

   Thread 2	Dimension Y	Length	20 mm
   Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
   Thread 2	Dimension X	Length	5 mm
   Thread repairs on spring strut mount

2. Repair thread →  5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR

   Use repair kit Thread repair kit 9843/3  with threaded bush → THREADED BUSH 999.504.262.01.

   Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

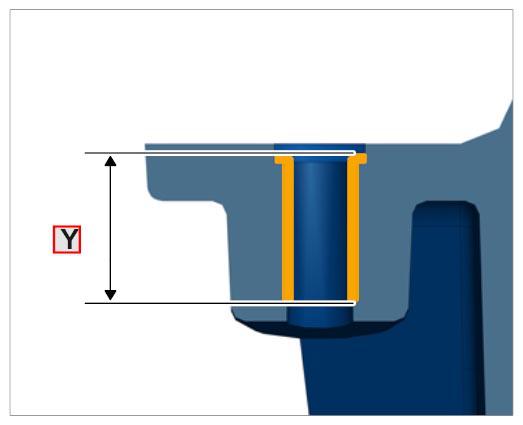

   Thread 3	Dimension Y	Length	9.4 mm
   Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

3. Repair thread → 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR

   Use repair kit Time-Sert thread repair kit Nr.122-1 Pos.1  with short threaded bush.
