Technical Values: Notes
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

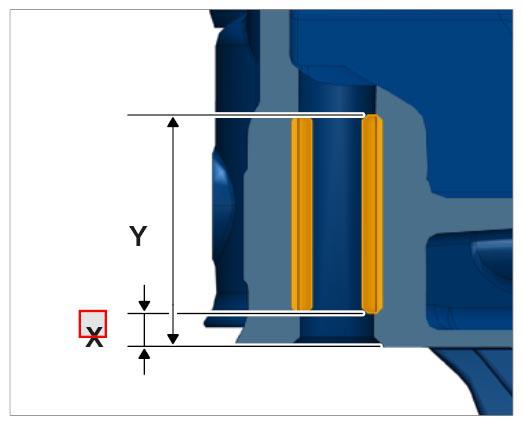

| Thread 1 and 2 | Dimension Y | Length | 33 mm | ||
|
Cross member thread repair |
|||||
| Thread 1 and 2 | Dimension X | Length | 5 mm | ||
|
Cross member thread repair |
|||||
- Repair thread → 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit Thread repair kit 9843 with threaded bush → THREADED BUSH 999.504.266.01.

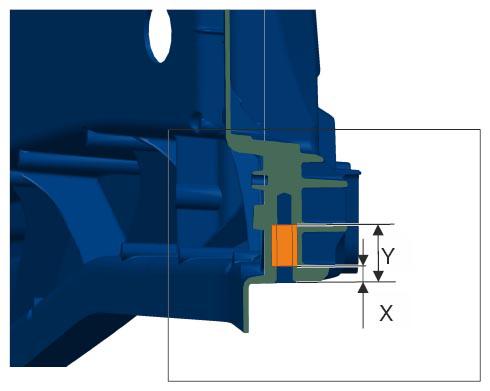

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Thread 1 and 2 | Dimension Y | Length | 37 mm | ||
|
Thread repairs on rear side member |
|||||
| Thread 1 and 2 | Dimension X | Length | 10 mm | ||
| Thread repairs on rear side member | |||||
- Repair thread → 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit thread repair kit 9843/1 with screw-in tool from repair kit thread repair kit 9843/2 and threaded bush → THREADED BUSH 999.504.267.01.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Thread 1 | Dimension Y | Length | 16.2 mm | ||
|
Thread repairs on impact absorber mount |
|||||
- Repair thread → 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR
Use repair kit Time-Sert thread repair kit Nr.122-1 Pos.2 with long threaded bush.
