Overview Of Repair Areas

G10029289Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Luggage compartment cross member
  2. Spring strut mount, left
  3. Spring strut mount, right
  4. Front engine mount
  5. Chassis
  6. Impact absorber mounts

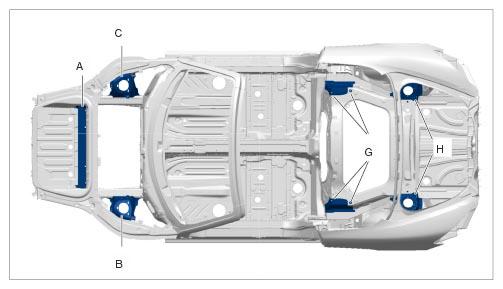

G10029290Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. A  - Luggage compartment cross member
  2. B  - Spring strut mount, left
  3. C  - Spring strut mount, right
  4. G  - Roll-over bar
  5. H  - Rear spring strut mount
