Installing Seat Cross Member

Information

• Position the seat cross members with the seat installed  .

1. Install the seat cross members and check that they fit perfectly. Check gap dimensions. → 5X00IN41 GAP DIMENSIONS .

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
   • Do not begin bonding work until all materials and tools necessary for later repair work are available  .

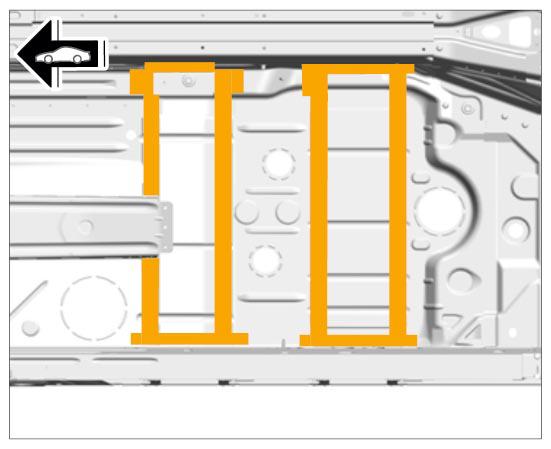

2. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

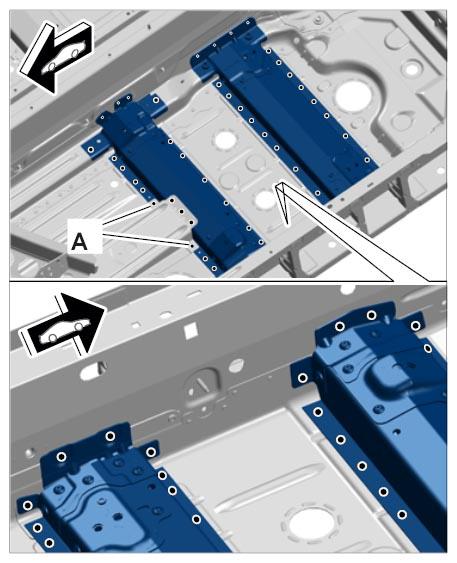

3. Rivet-in the seat cross members. → BLIND RIVET 999.190.227.01
   1. 3.1. Rivet in area -A-  . → BLIND RIVET 999.190.230.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
