Replacing Holder For Dashboard Bracket

Remove holder for dashboard bracket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

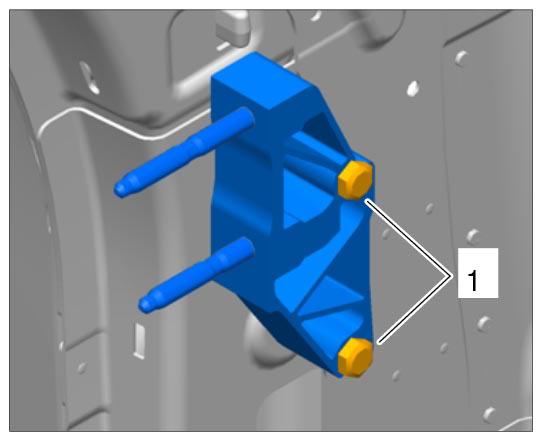

1. 1.1. Unscrew fastening screws -1- for the holder for the dashboard bracket.
  To keep the fastening screws straight, loosen the fastening screws gradually in alternating sequence.
2. 1.2. Remove holder for dashboard bracket with the fastening screws.
  The fastening screws -1- remain in the holder for the dashboard bracket.
Install holder for dashboard bracket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Place holder for dashboard bracket in installation position.
2. 2.2. Fit and screw in fastening screws -1- and tighten to Tightening torque 23 Nm (17 ftlb.) until secure.
  Make sure that the fastening screws are straight.
