Removing Cowl Panel

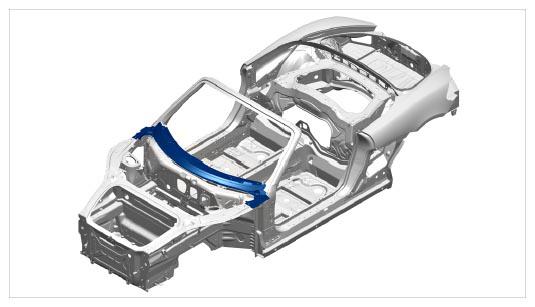

Fig 1: Cowl Panel Component Location (Except Boxster Gts)

G10029117

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

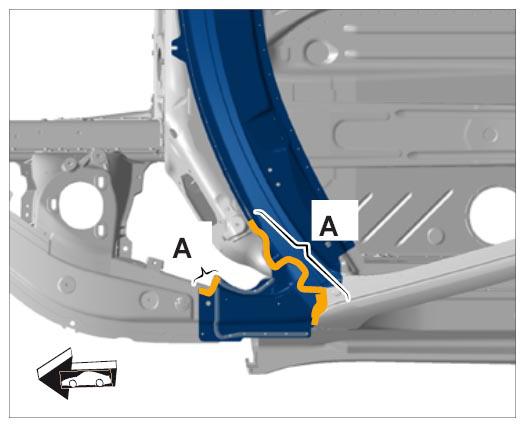

Remove seam seal in area -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

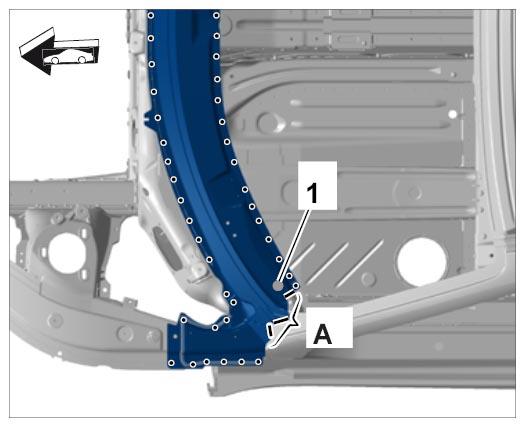

Drill out the connection point on one side only. Do not damage the plate underneath.

Information
- Some of the repair illustrations show only one side of the vehicle .
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Drill out spotwelds using spotweld drill .

2.1. Remove welded seams in area -A- .

G10029119

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

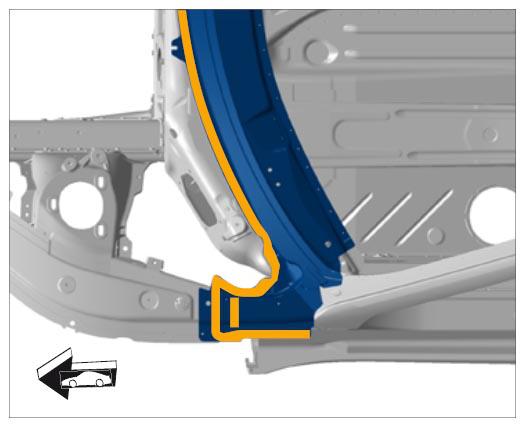

Heat bonding surfaces.

3.1. Remove cowl panel.

G10029120

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
