Preparing Connection Areas Of The Body For A-Pillar Reinforcement
- Align the sealing surface and connections of the body.
- De-burr connection points and prepare them for welding.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
- Do not begin bonding work until all materials and tools necessary for later repair work are available .
- Prepare marked areas for welding and bonding.

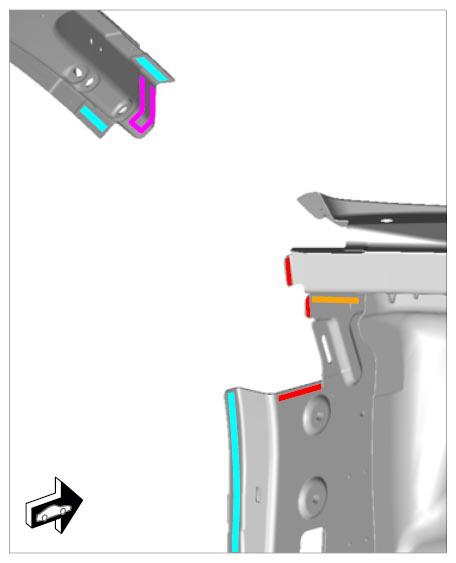

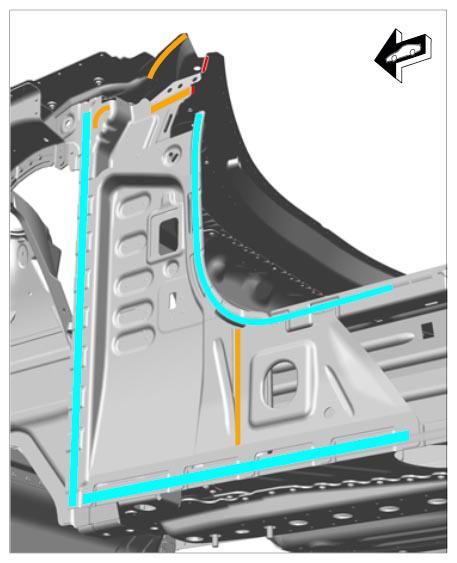

Blue Resistance spot-welding + bonding Magenta Bonding + riveting Orange Bonding Red Plug-welding/apply a full weld using inert gas without bonding
- Align the sealing surface and connections of the body.
- De-burr connection points and prepare them for welding.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
- Do not begin bonding work until all materials and tools necessary for later repair work are available .
- Prepare marked areas for welding and bonding.

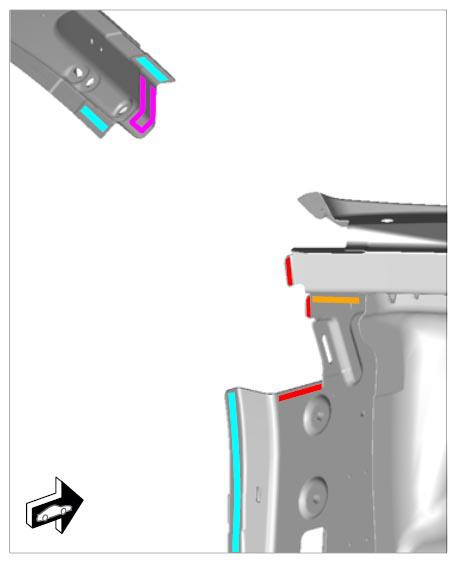

Blue Resistance spot-welding + bonding Magenta Bonding + riveting Orange Bonding Red Plug-welding/apply a full weld using inert gas without bonding
