Removing A-Pillar

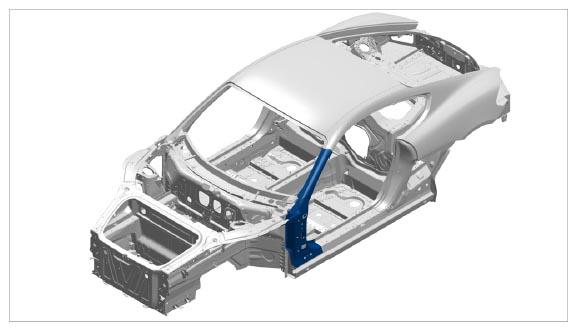

Fig 1: A-Pillar Component Location (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

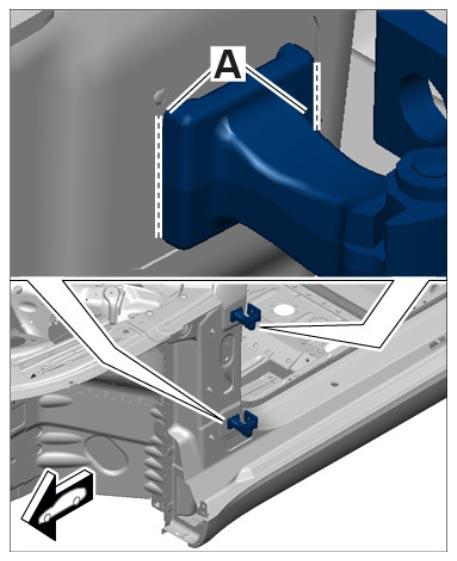

Grind down welded seams -A- on the door hinges.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

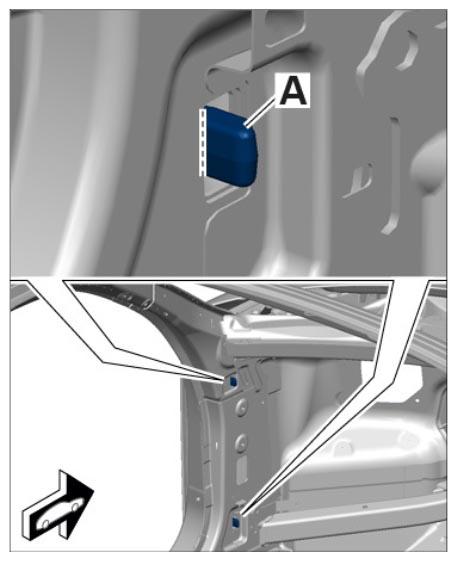

Grind down welded seams -A- on the door hinges.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

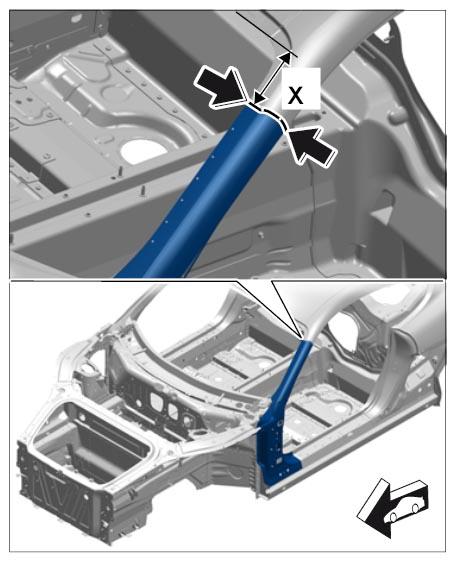

Mark cut X in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.
Mark and make cut. → Distance: 60 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

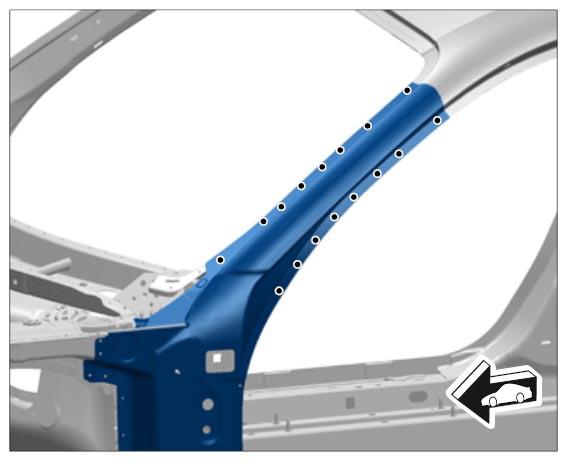

Drill out the connection point on one side only. Do not damage the plate underneath.

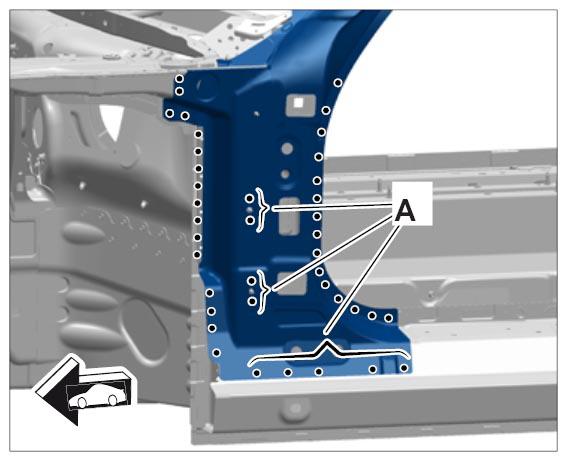

Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

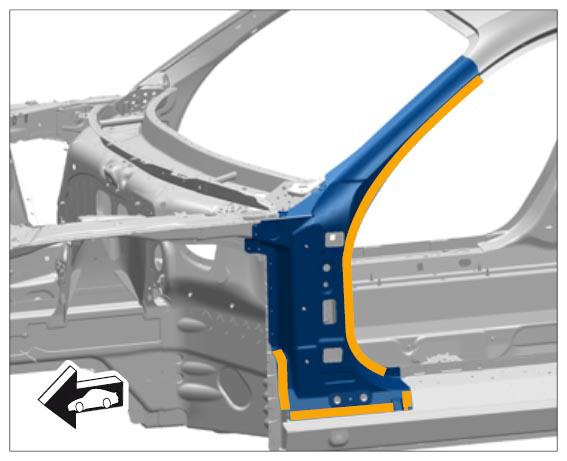

Heat bonding areas.

5.1. Remove A-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
