Removing Padding For Front Middle Backrest With Active Seat Ventilation

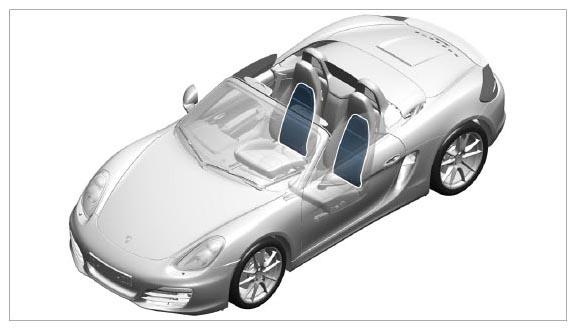

Fig 1: Identifying Cover For Front Middle Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Disengage cover -1-  from the plastic frame -2-  all the way around -arrows-  .

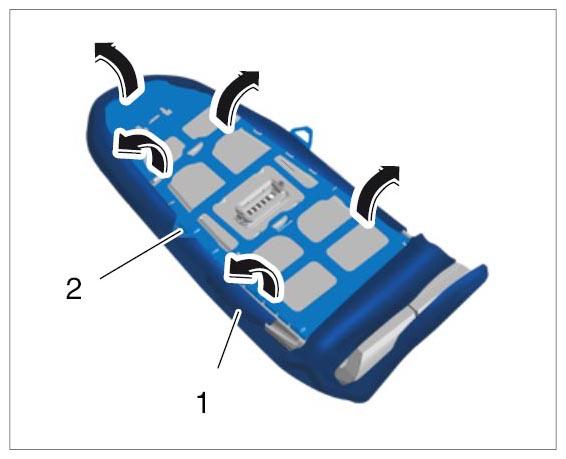

   Fig 2: Disengaging Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release and disengage cushion clips -1-  using a screwdriver -arrow A-  .
3. Remove plastic frame -2-  from the cover -3-  and remove padding -4-  (-arrow B-  ).

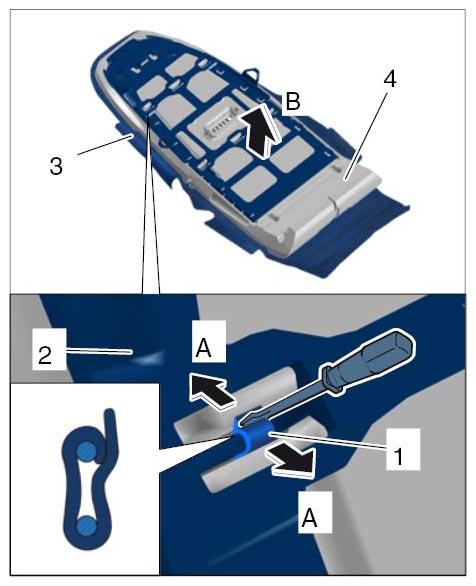

Fig 3: Removing Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
