Installing Padding For Front Backrest: Notes

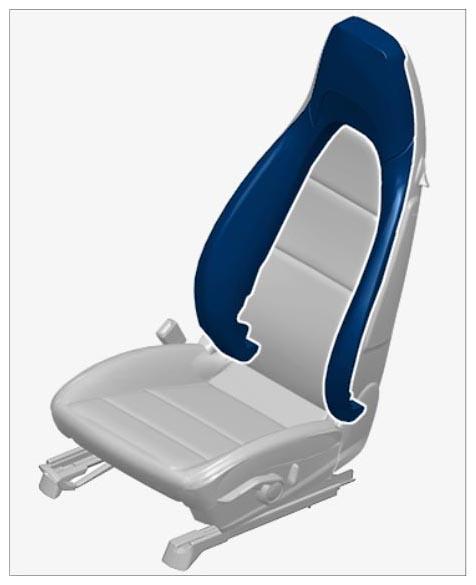

Fig 1: Identifying Padding Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Sealing surface of backrest frame must be clean and free of grease.

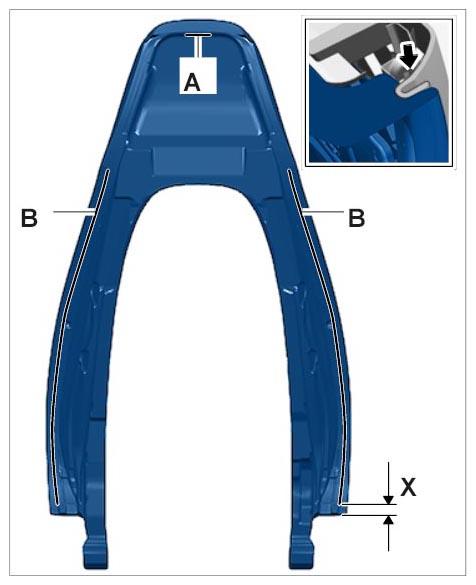

1. Apply adhesive at the Centre of the cushion carrier -A-  and on the edge (-inset-  ) of the cushion carrier -B-  , but not on the lower end -X-  .
   Fig 2: Applying Adhesive At Centre Of Cushion Carrier And Edge Of Cushion Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

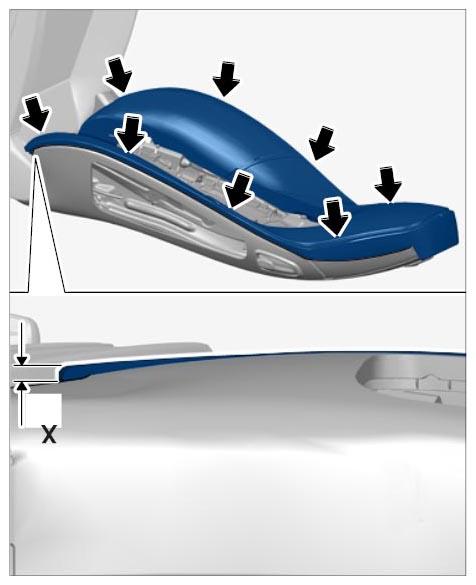

2. Place padding on the cushion carrier and align it with the cushion carrier.
   1. 2.1. Press the padding onto the cushion carrier from above -arrows-
      Fig 3: Installing Padding

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. The top of the padding is flush with the rear of the seat, while the padding is sticking out slightly above the cushion carrier at the bottom, -X-  .
