Preliminary Work

  1. Disconnect the battery. → CONNECTING AND DISCONNECTING BATTERY .
  2. Remove cover for front middle backrest. → REMOVING COVER FOR FRONT MIDDLE BACKREST .
  3. Disengage the clip -1-  for the cover at the bottom right in direction of travel on the back of the backrest -A-  .

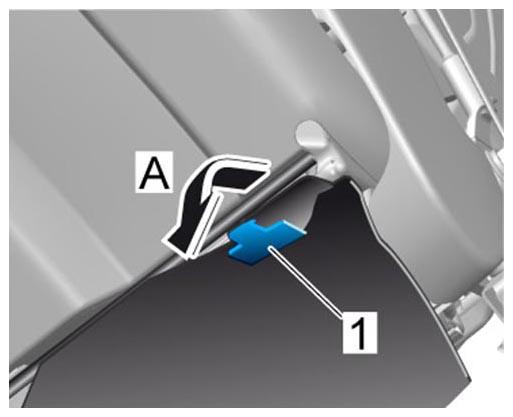

    Fig 1: Detaching Rear Cover
    G10027957Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Detach the cover at the right in direction of travel -Arrow-  .

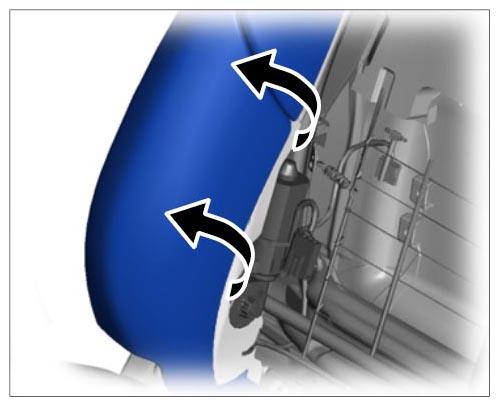

    Fig 2: Detaching Cover
    G10027958Courtesy of PORSCHE CARS NORTH AMERICA, INC.
