Component Information

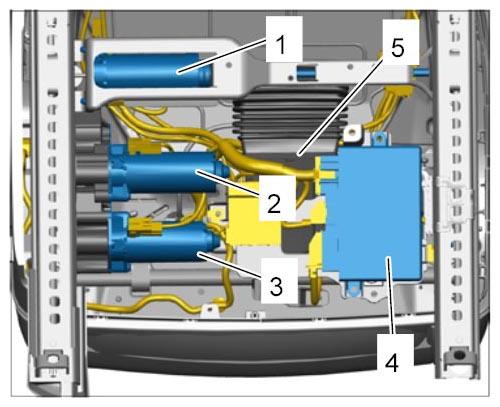

  1. Motor for seat adjustment
  2. Motor for rear vertical adjustment
  3. Motor for front vertical adjustment
  4. Control unit for memory seat adjustment
  5. Suction fan for seat surface
    6. Fig 1: Identifying Motors For Seat Adjustment Position
    G10027950Courtesy of PORSCHE CARS NORTH AMERICA, INC.
