Component Information

  1. Motor for seat adjustment
  2. Motor for rear vertical adjustment
  3. Motor for front vertical adjustment
  4. Control unit for memory seat adjustment

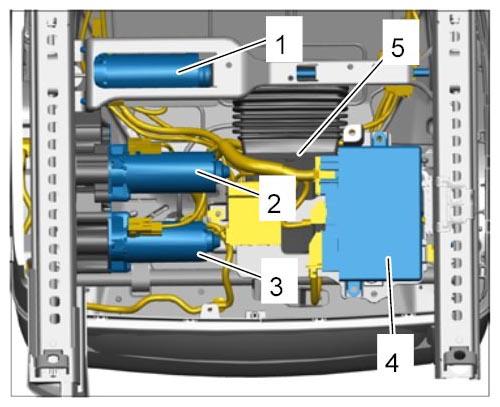

    5. Fig 1: Identifying Motor For Seat Adjustment Position
    G10027943Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Suction fan for seat surface
