Removing Switch For Seat Adjustment

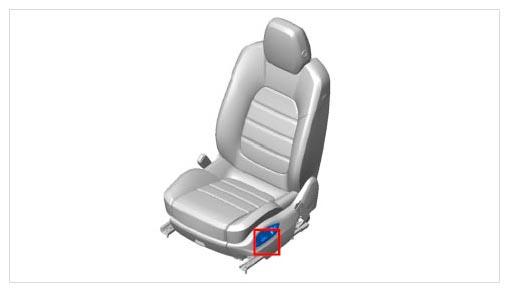

Fig 1: Identifying Seat Adjustment Switch Position
G10027940Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  .
  2. Remove the seat adjustment switch -2-  from the trim panel.

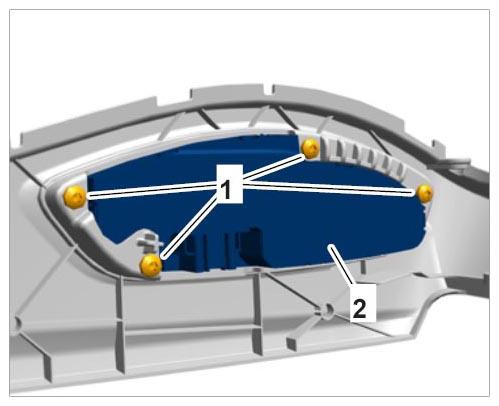

    3. Fig 2: Removing Switch From Seat Adjustment
    G10027941Courtesy of PORSCHE CARS NORTH AMERICA, INC.
