Home >> Porsche >> 2016 >> Boxster Spyder >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> 72 - Seat Frames -- (981) BOXSTER/CAYMAN >> WM 728619 Removing And Installing Switch For Seat Adjustment (Except CAYMAN GTS, BOXSTER GTS) >> Installing Switch For Seat Adjustment

Installing Switch For Seat Adjustment

  1. Fit seat adjustment switch -2-  into the trim panel.
  2. Screw in and tighten the fastening screws -1-  .

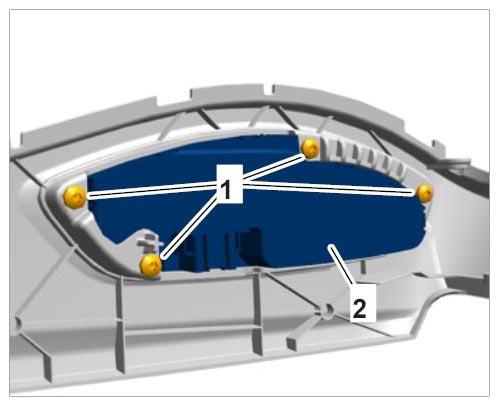

    3. Fig 1: Installing Switch For Seat Adjustment
    G10027942Courtesy of PORSCHE CARS NORTH AMERICA, INC.
