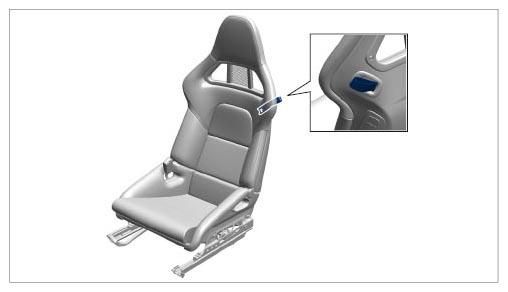

Removing Loop For Backrest Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

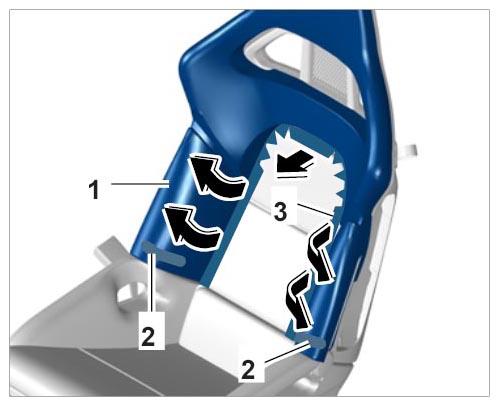

- Pull off the cover -1-
at the Velcro fasteners -2-
and -3-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

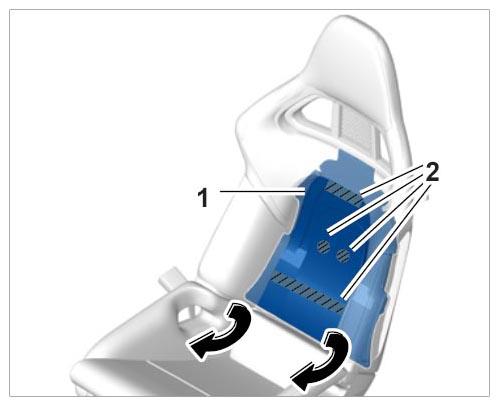

- Carefully detach foam part of backrest -1-
at the bonding points -2-
, starting at the bottom and remove it -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

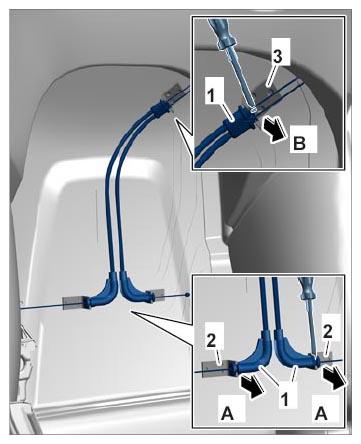

- Insert a screwdriver between the bowden cable -1-
and lower bracket -2-
and press out the bowden cable -arrows A-
.
- Insert a screwdriver between the bowden cable -1-
and upper brackets -3-
and press out the bowden cable -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

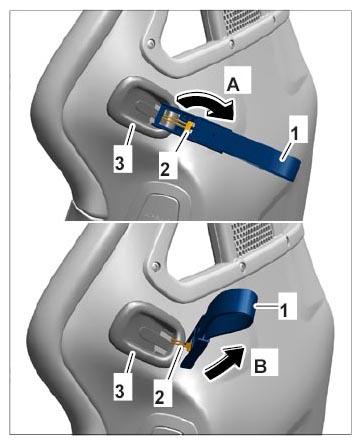

- Pull loop -1-
and bowden cable -2-
out of the collar -3-
(-arrow A-
).
- Swivel loop -1-
in -direction of arrow B-
and disengage bowden cable -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
