Removing Bowden Cable For Backrest Release

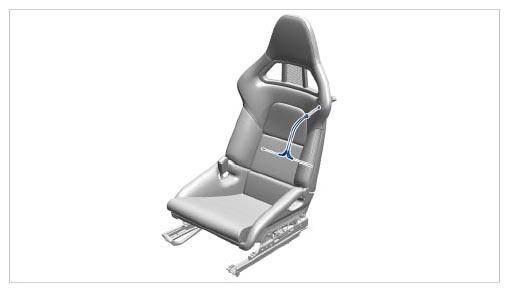

Fig 1: Identifying Bowden Cable For Backrest Release Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Disengage bowden cable at the left and right on the upper part of the lock.
   1. 1.1. Unclip bowden cable -1-  from the locking clip -2-  and swivel it 90° -arrow A-  .
   2. 1.2. Remove bowden cable -1-  from the actuating lever -3-  (-arrow B-  ).

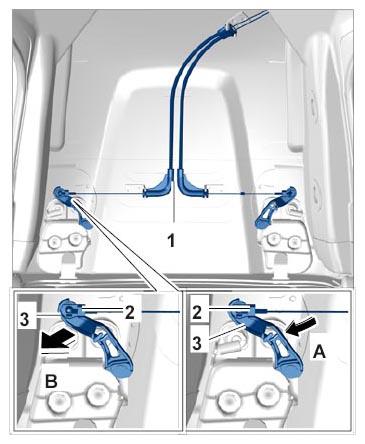

   Fig 2: Removing Bowden Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
