Installing Bowden Cable For Backrest Release

  1. Check locking clip -1-  and replace it if necessary.

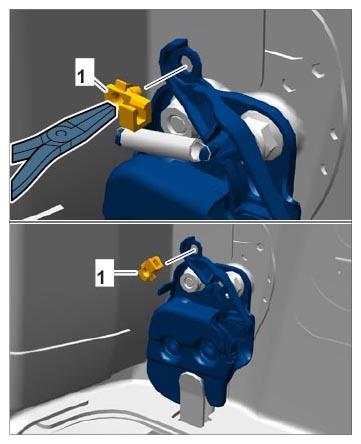

    Fig 1: Checking Locking Clip
    G10027871Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage bowden cable at the left and right on the upper part of the lock.
    1. 2.1. Guide bowden cable -1-  into the locking clip -2-  on the actuating lever -3-  (-arrow A-  ).
    2. 2.2. Swivel the bowden cable -1-  90° and engage it in the locking clip -2-  (-arrow B-  ).

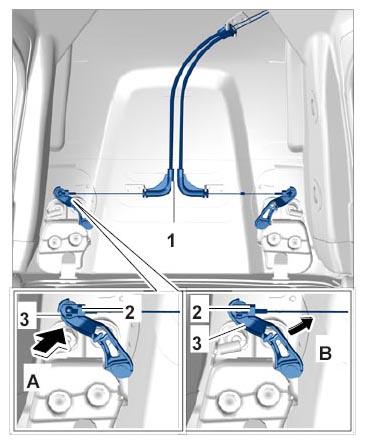

      3. Fig 2: Installing Bowden Cable
      G10027872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
