Removing Bowden Cable For Backrest Release

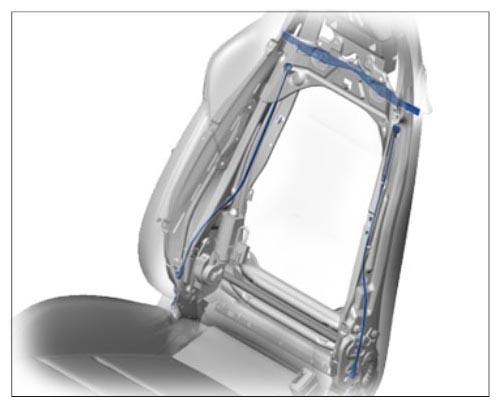

Fig 1: Identifying Bowden Cable For Backrest Release Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Release backrest and fold forwards.
2. Disengage tension spring -1-  .
3. Press lock washers -2-  out with a screwdriver and remove backrest frame release -3-  .

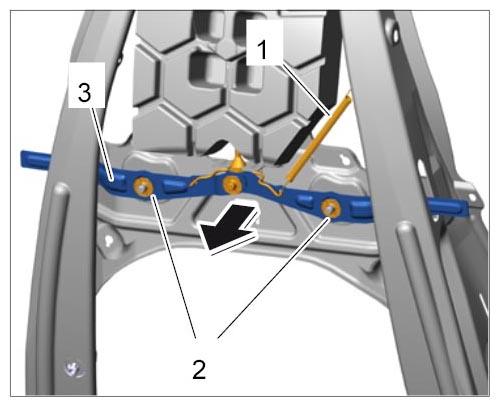

Fig 2: Removing Backrest Frame Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Unclip fixing clip -1-  from the backrest frame -2-  (-arrow A-  ).
5. Swivel eye -3-  of bowden cable through 90° -arrow B-  and pull it out of the locking lever.

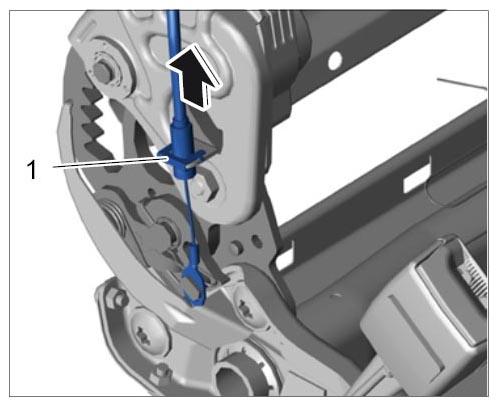

Fig 3: Disengaging Bowden Cable Downwards
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Swivel pin -1-  of bowden cable up 90° -arrow-  and disengage it.

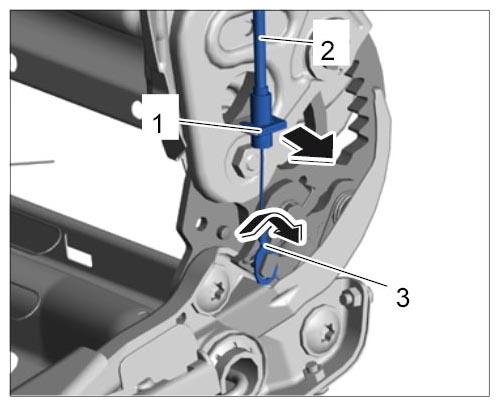

   Fig 4: Disengaging Bowden Cable Upwards

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Press locking tab on fixing clip -1-  inwards slightly and press fixing clip down and out of the backrest frame -arrow-  .

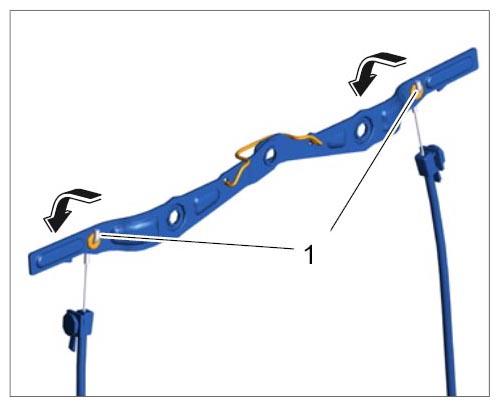

   Fig 5: Disengaging Bowden Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Take fixing clip -1-  off bowden cable and remove bowden cable upwards out of the backrest frame -arrow-  .

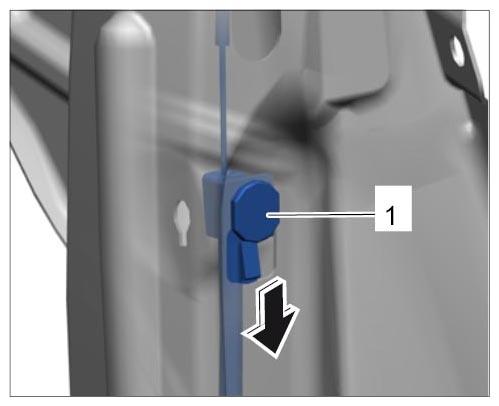

   Fig 6: Removing Bowden Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
