Assembling Cushion Carrier For Front Backrest

Position fastening bracket.
1. 1.1. Position holder -1- for connector for pressure sensor mat.
2. 1.2. Position bracket for connector holder -2- and tighten fastening screws.
3. 1.3. Position bracket for control unit -3- and tighten fastening screws.

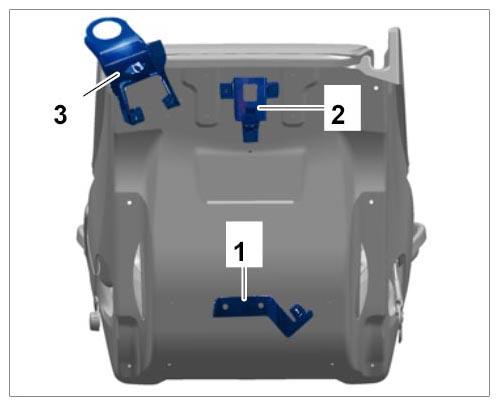

  Fig 1: Positioning Fastening Brackets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure brackets.
1. 2.1. Rivet bracket for pressure sensor mat connector -1- .
2. 2.2. Tighten fastening screws -2- and -3- to the specified tightening torque.
  Item 2 Tightening torque 4 Nm (3 ftlb.)

  Item 3 Tightening torque 6 Nm (4.5 ftlb)

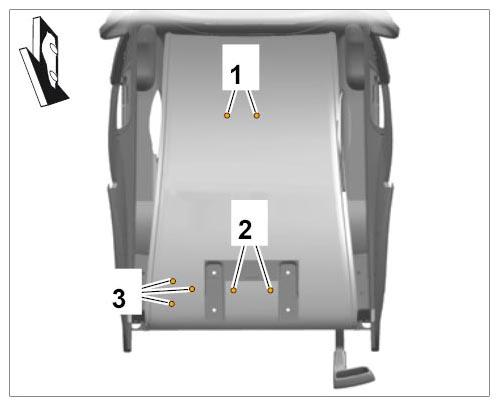

  Fig 2: Securing Brackets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install filler piece -1- and -2- in the backrest cushion carrier -3- .

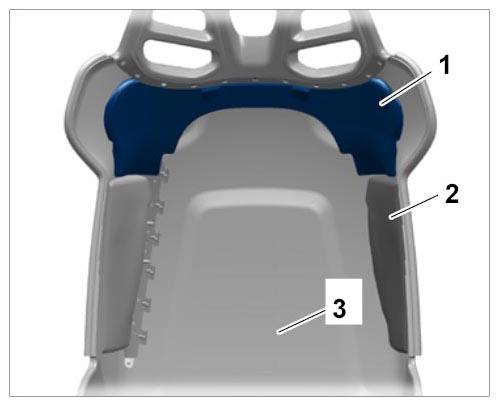

Fig 3: Removing Filler Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
