Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing backrest frame to seat frame   Tightening torque 34 Nm (25 ftlb.) +/-4 Nm (+/- 3 ftlb.)

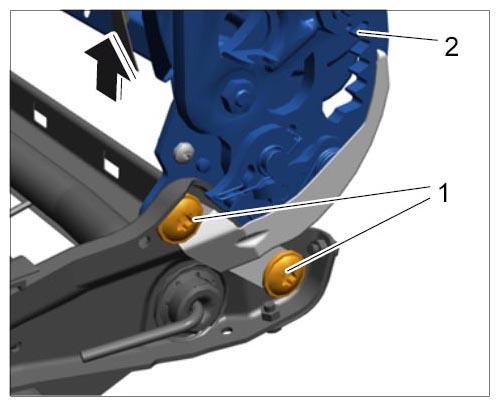

G10027802

Removing backrest frame
