Disconnecting Wire Harness On Backrest Frame

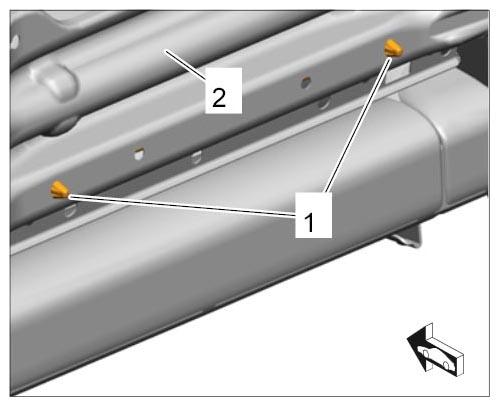

Loosen clips -1- for wire harness on the rear of the lower backrest frame -2- .

Fig 1: Loosening Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

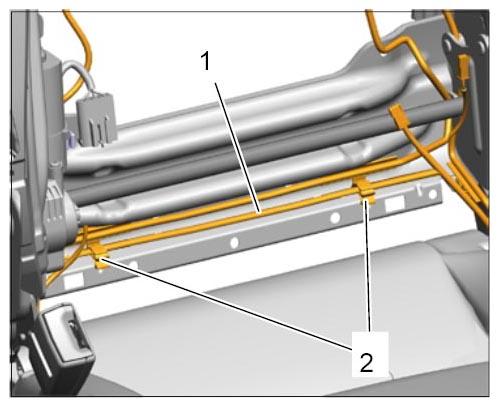

Remove section of side airbag line -1- from the clips -2- .

Fig 2: Removing Lower Section Of Side Airbag Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

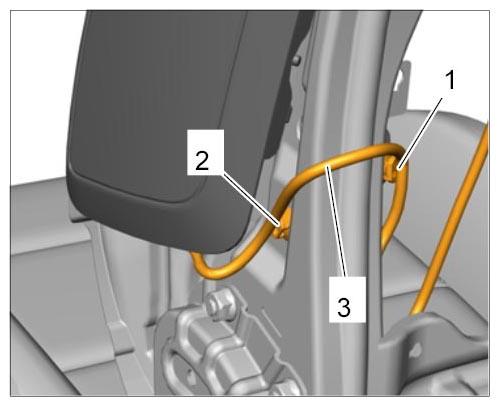

Remove section of side airbag line -1- from the tie-wrap on the outer side of the backrest frame -2- and from the tie-wrap on the inside of the backrest frame -3- .

Fig 3: Removing Upper Section Of Side Airbag Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

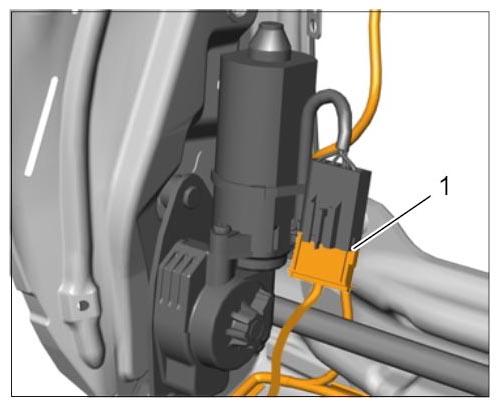

Disconnect electric plug connection for backrest adjustment -1- .

Fig 4: Disconnecting Electric Plug Connection For Backrest Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

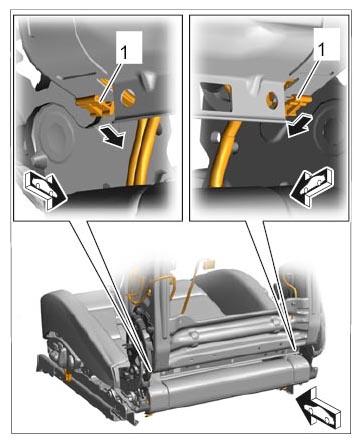

Release clips for wire harness on backrest frame -arrow- .

Fig 5: Releasing Wire Harness On Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

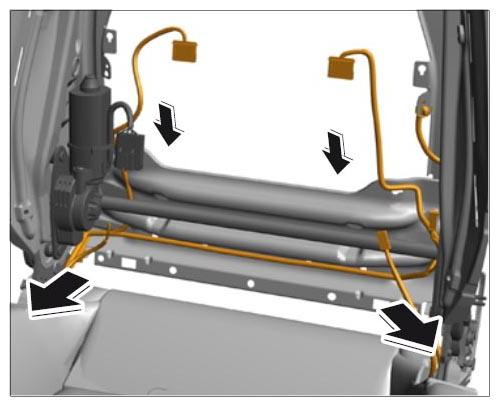

Pull wire harness for backrest down and out, -arrows- .
Information

Make sure not to trap or damage the wire harness when pulling it through.

Fig 6: Pulling Out Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
