Removing Air Cushion For Backrest

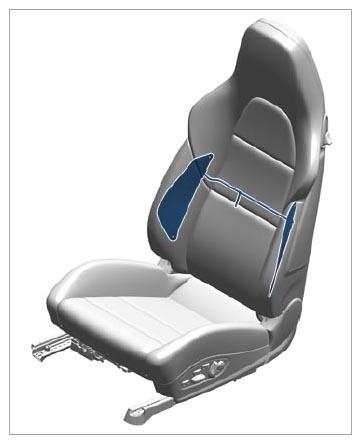

Fig 1: Identifying Air Cushion For Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

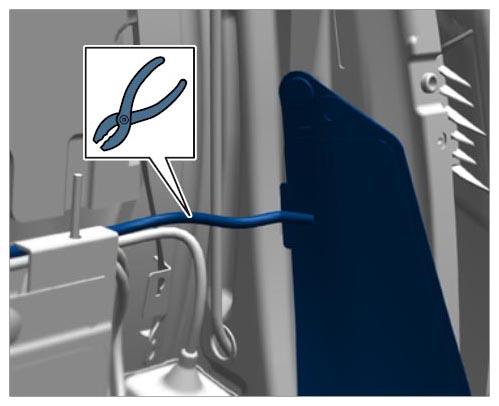

Disconnect air connection line from air cushion for backrest using a suitable tool in accordance with xxx Length 30 mm .
Information
- Cut air connection lines at a right angle .
- Do not crush air connection lines when cutting them .

  Fig 2: Disconnecting Air Connection Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

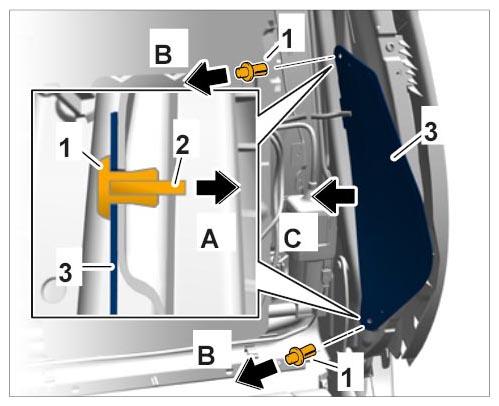

Press the pins -2- on the two expanding clips -1- through -arrow A- and remove expanding clips -arrow B- .
Remove air cushion for backrest -3- (-arrow C- ).

Fig 3: Removing Air Cushion For Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
