Removing Pressure Sensor Mat For Occupant Detection

Information

Passenger seat only for USA/Canada and Mexico vehicles.

1. Release and unplug electric plug connection from pressure sensor mat at the locking mechanism.

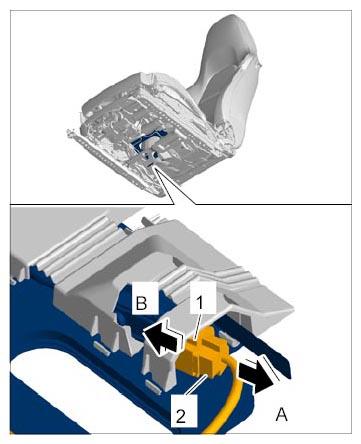

   Fig 1: Releasing Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove fixing clips.
   Fig 2: Removing Pressure Sensor Mat

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disengage the retainer plate from the looking hooks and guide pressure sensor mat out of the seat frame.
