Mounting Front Seat On Assembly Fixture

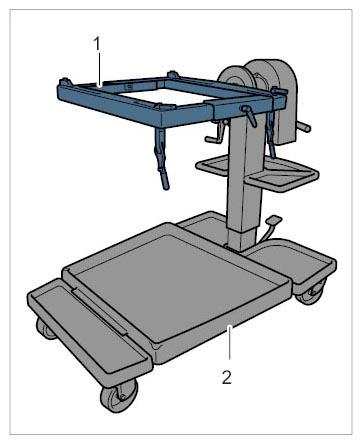

  1. Fit seat mounting -1-  on the assembly stands -2-  .
    Fig 1: Fitting Seat Mounting
    G10027723Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Adjust the seat mounting.

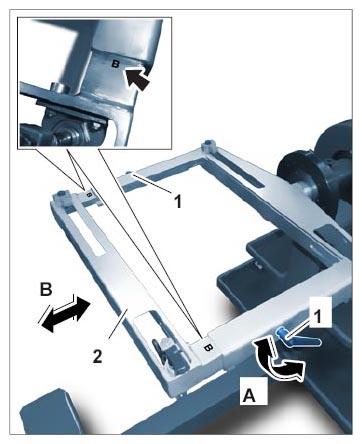

    1. 2.1. Loosen locking lever -1-  (-arrow A-  ).
    2. 2.2. Adjust seat mounting -2-  to the relevant width (-Mark B-  ) of the seat frame -arrow B-  .
      3. Fig 2: Adjusting Seat Mounting
      G10027724Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 2.3. Tighten locking lever -1-  .

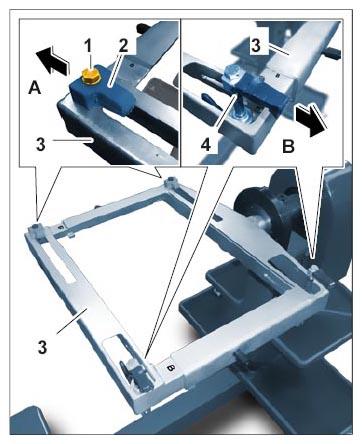

    4. 2.4. Loosen fastening screw -1-  and slide locking wedge -2-  as far as the outer edge of the seat mounting -3-  (-arrow A-  ).
    5. 2.5. Tighten fastening screw -1-  .
    6. 2.6. Slide locking lever -4-  as far as the outer edge of the seat mounting -3-  (-arrow B-  ).
    Fig 3: Adjusting Latch
    G10027725Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit front seat.

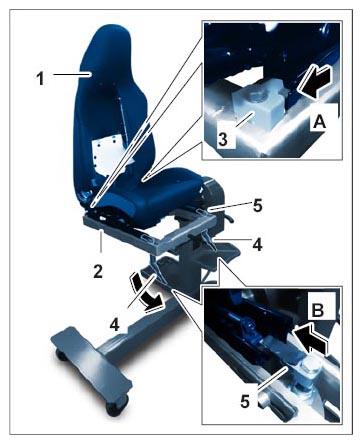

    1. 3.1. Position the front seat -1-  on the seat mounting -2-  .
    2. 3.2. Slide the seat frame as far as it will go into the locking wedge -3-  (-arrow A-  ).
    3. 3.3. Slide locking lever -4-  into the seat frame -arrow B-  and lock it -arrow C-  .

      Information

      The preload on the locking lever can be increased or reduced by turning the adjusting screw -5-  .

      4. Fig 4: Fitting Front Seat
      G10027726Courtesy of PORSCHE CARS NORTH AMERICA, INC.
