Loosening Seat Screws At The Front

  1. Release front seat at the front.
    1. 1.1. Move seat -1-  to rear end position.
    2. 1.2. Unscrew front fastening screws -2-  from the seat rails at the left and right -3-  .

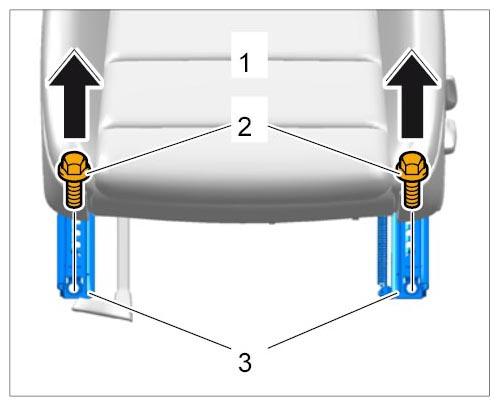

      Fig 1: Loosening Seat Screws At Front
      G10027708Courtesy of PORSCHE CARS NORTH AMERICA, INC.
