Disconnecting Electric Line

Information

The number of plug connections can vary, depending on equipment.

  1. Disconnect the battery → WM 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS) .
    1. 1.1. Tilt seat backwards.
    2. 1.2. Unclip wire harness -1-  .

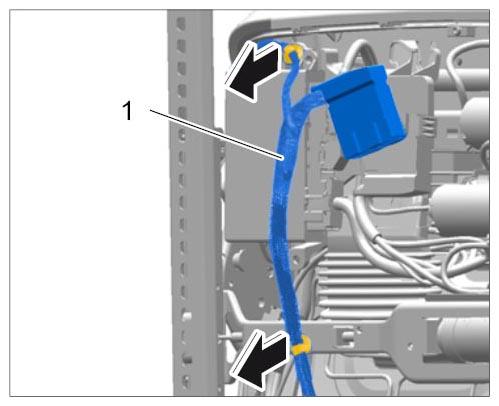

      Fig 1: Releasing Electric Line
      G10027710Courtesy of PORSCHE CARS NORTH AMERICA, INC.
