Disconnecting Central Connector

  1. Release the safety lock of the central connector and disconnect connection -1-  (-arrow-  ).
  2. Disconnect plug connection on control unit -2-  .

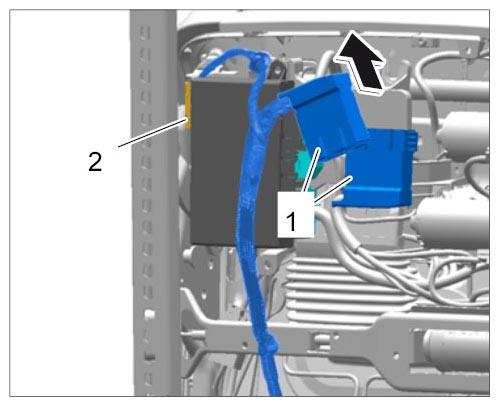

    Fig 1: Disconnecting Central Connector
    G10027711Courtesy of PORSCHE CARS NORTH AMERICA, INC.
