Technical Values
| Location | Description | Type | Basic Value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening Screws Securing Tunnel Support To Body/Dashboard Bracket | Tightening Torque | 23 Nm (17 ft. lbs.) | |||
|

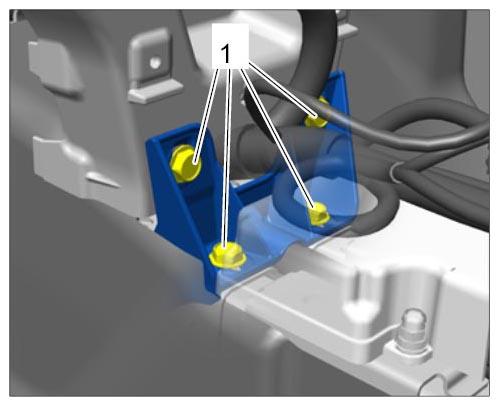

Mounting For Upper Part Of Tunnel Support |
|||||
| Fastening Screw Securing Tunnel Support At The Side To Body | Tightening Torque | 23 Nm (17 ft. lbs.) | |||
|

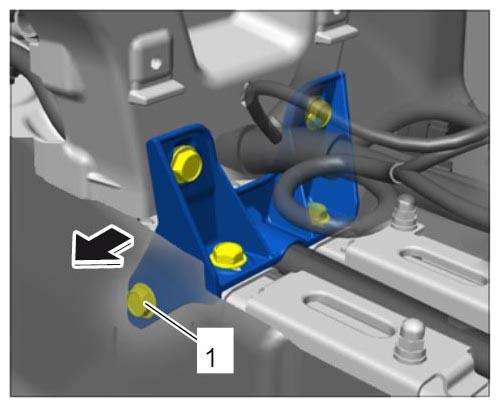

Mounting For Tunnel Support At The Lower Side |
|||||
