Removing Glove Compartment

  1. Unscrew the fastening screw at the side -1-  .

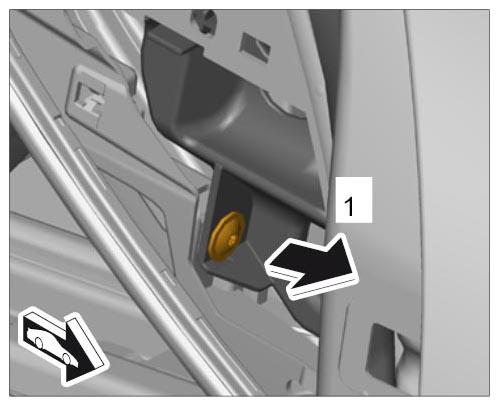

    Fig 1: Loosening Mounting At Side
    G10027288Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew the fastening screws at the bottom -1-  .

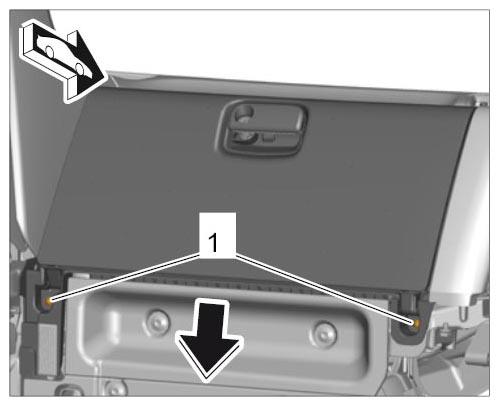

    Fig 2: Loosening Mounting At Bottom
    G10027289Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew the fastening screws at the top -1-  .

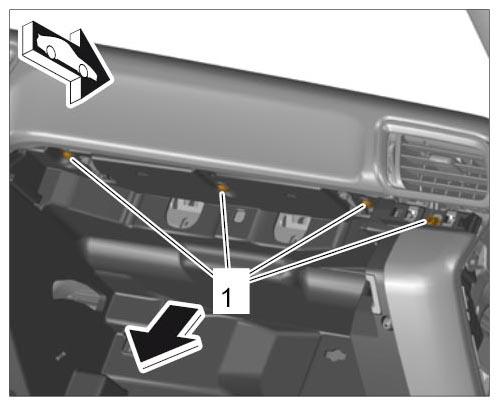

    Fig 3: Loosening Mounting At Top
    G10027290Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unclip the glove compartment -arrow-  .

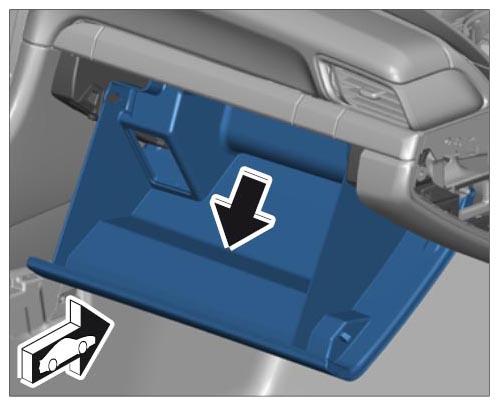

    Fig 4: Unclipping Glove Compartment
    G10027291Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Pull off plug connection for glove compartment light -arrow-  .

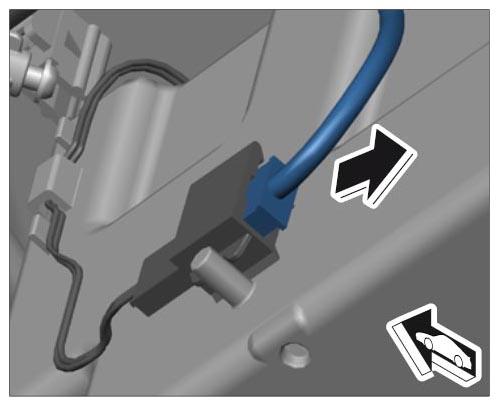

    Fig 5: Disconnecting Plug Connection
    G10027292Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Guide wire harness for multimedia interface out of the glove compartment -arrow-  .

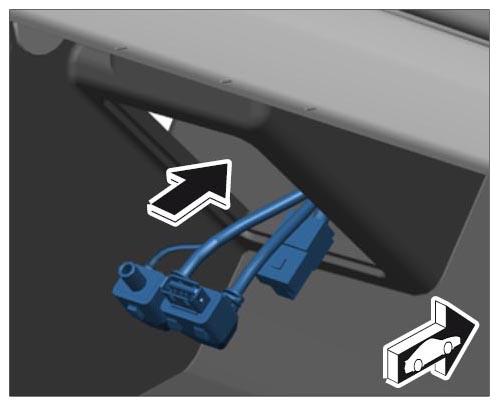

    Fig 6: Guiding Out Wire Harness
    G10027293Courtesy of PORSCHE CARS NORTH AMERICA, INC.
