Installing Glove Compartment

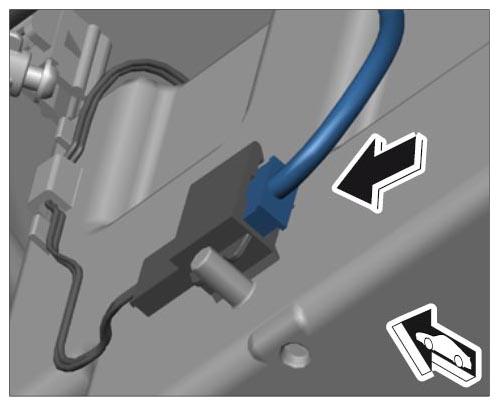

Plug in the plug connection for the glove compartment light -arrow- and check that it is seated securely.

Fig 1: Plugging In Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

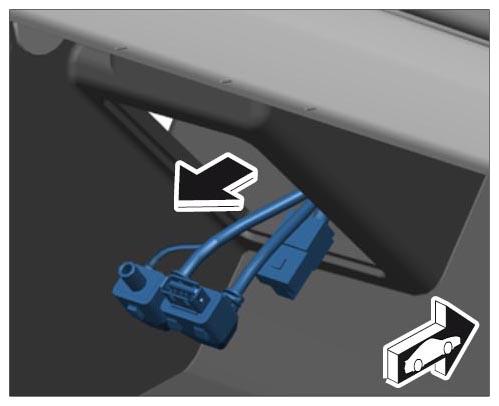

Guide the lines into the glove compartment -arrow- .

Fig 2: Guiding Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

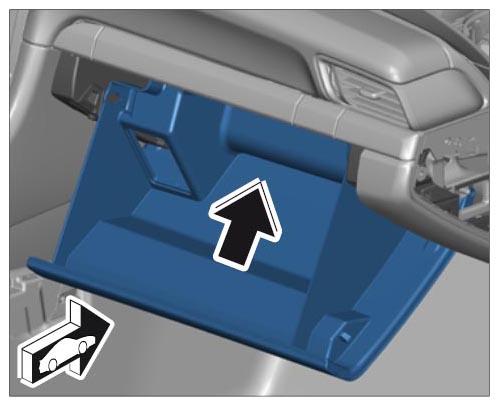

Position the glove compartment on the supports in the vehicle and clip it in -arrow- .

Fig 3: Clipping Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

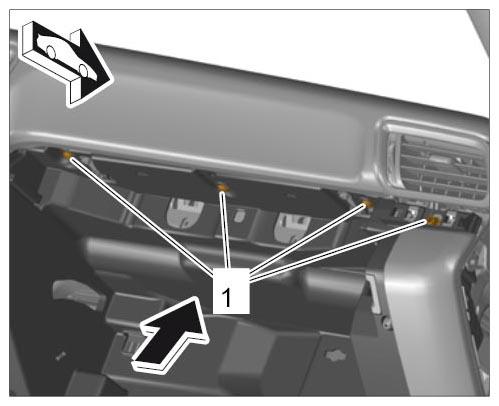

Tighten the fastening screws at the top -1- according to the tightening specifications.
→ Tightening torque: 3.2 Nm (2 ft. lbs.)

Fig 4: Securing Glove Compartment At Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

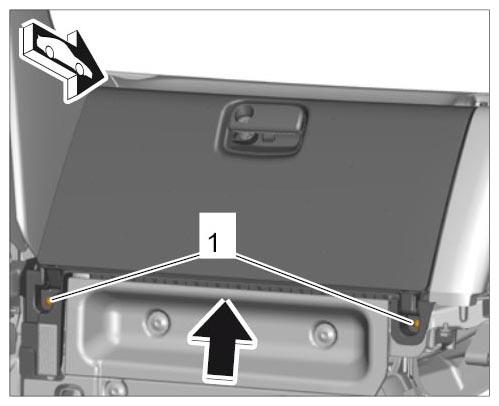

Tighten the fastening screws at the bottom -1- according to the tightening specifications.
→ Tightening torque: 13 Nm (9.5 ft. lbs.)

Fig 5: Securing Glove Compartment At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

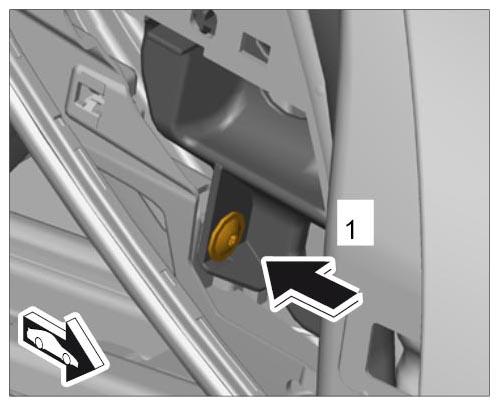

Tighten the fastening screw at the side -1- according to the tightening specifications.
→ Tightening torque: 3.2 Nm (2 ft. lbs.)

Fig 6: Securing Glove Compartment At Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
