Removing Center Console Cover

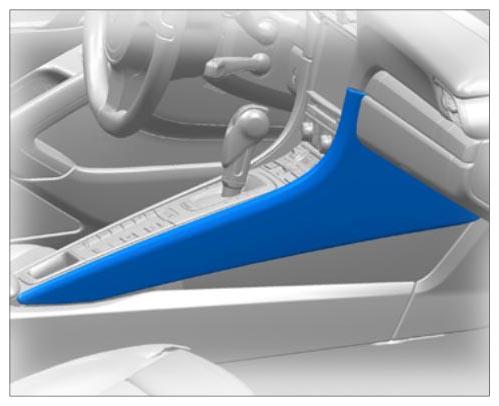

Fig 1: Identifying Center Console Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

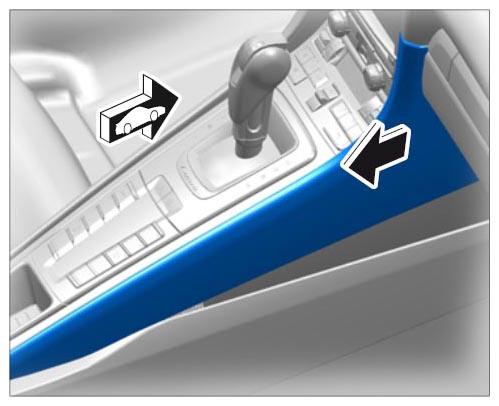

Unclip side trim panel to the side -arrow-

Fig 2: Unclipping Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

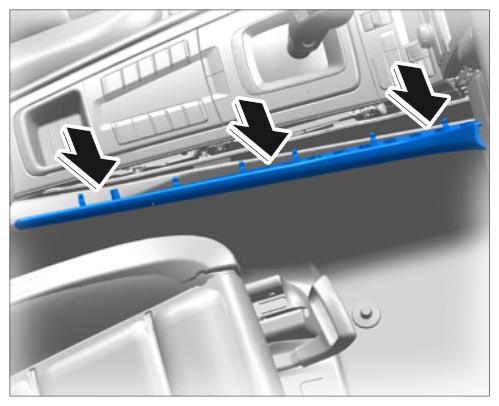

Pull the side trim panel back out of the guide -arrow- .

Fig 3: Removing Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

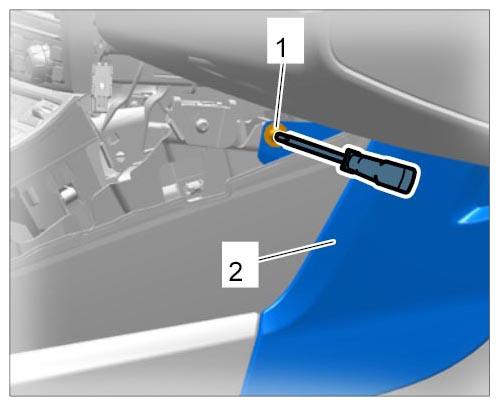

Unscrew fastening screw -1- on the footwell outlet vent trim -2- .

Fig 4: Detaching Footwell Outlet Vent Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove footwell outlet vent trim.

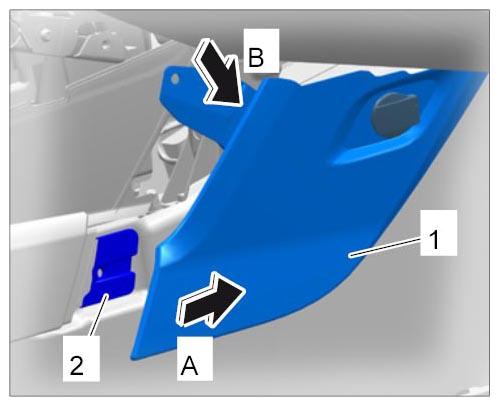

1. 4.1. Guide footwell outlet vent trim -1- forward -arrow A- out of the guide -2- .
2. 4.2. Remove footwell outlet vent trim in a downward direction -arrow B- .

  Fig 5: Removing Footwell Outlet Vent Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

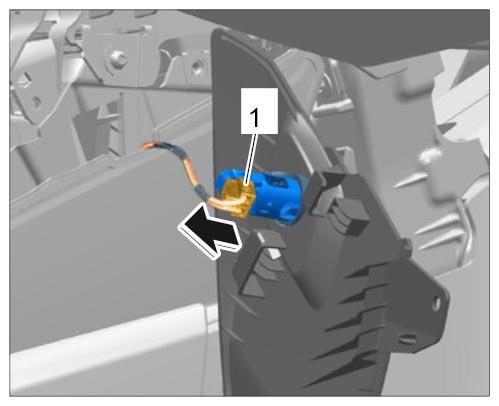

Release electric plug connection -1- on the passenger's side and pull it off -arrow- .

Fig 6: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
