Removing Glove Compartment Lid

  1. Unclip the two fastening pins -1-  by levering them off using a suitable pliers.

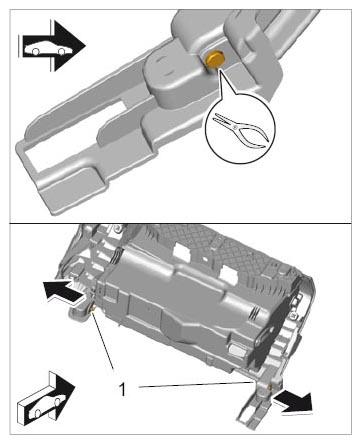

    Fig 1: Loosening Mounting For Glove Compartment Lid
    G10027278Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the limit stop for the glove compartment lid by turning it -A-  and remove it from the glove compartment -B-  .
    Fig 2: Removing Limit Stop
    G10027279Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull off the plug connection for the glove compartment light switch and the pin for the glove compartment lid brake.
    1. 3.1. Pull off the plug connection for the glove compartment light switch -A-  .
    2. 3.2. Pull out the retaining pin for the glove compartment lid brake -B-  .

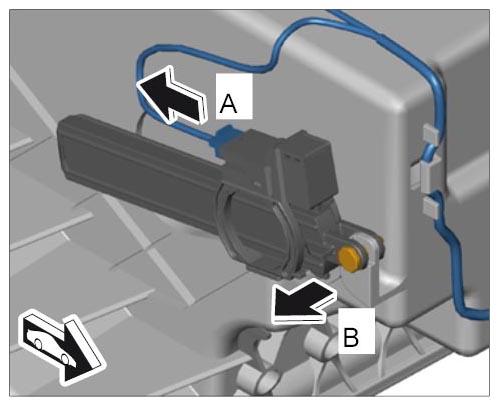

    Fig 3: Removing Plug Connection And Pin
    G10027280Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Release the glove compartment lid brake by turning it -A-  and remove it from the glove compartment -B-  .

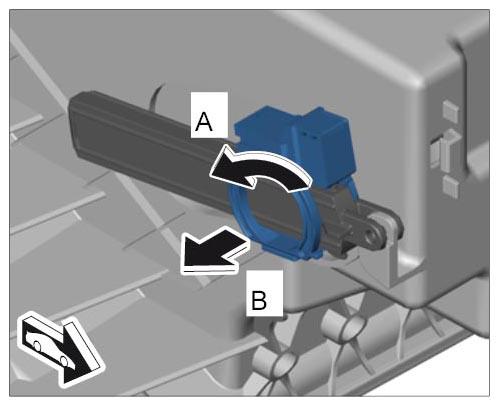

    Fig 4: Removing Glove Compartment Lid Brake
    G10027281Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove glove compartment lid.
