Removing Glove Compartment Lock

  1. Lift the handle -A-  and release the locking mechanism for the lock -B-  .

    The locking mechanism remains in the handle.

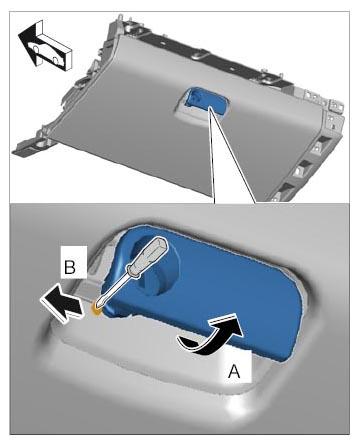

    Fig 1: Releasing Lock
    G10027276Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert ignition key and pull the lock out of the handle.

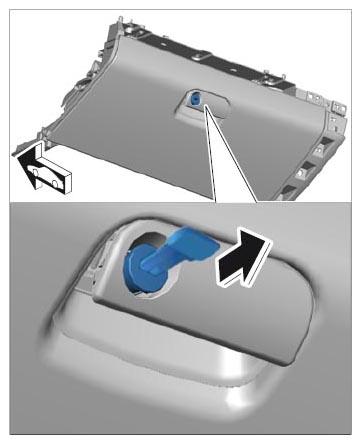

    Fig 2: Removing Lock From Handle
    G10027277Courtesy of PORSCHE CARS NORTH AMERICA, INC.
