Removing Engine Guard
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle can fall down
- Risk of squashing or crushing
- Risk of damage to the vehicle
→ Do not place any solid objects under the raised vehicle.
→ Ensure that the lifting platform is prevented from lowering.
→ Remove solid objects before lowering the vehicle.
→ Raise the vehicle only at the jacking points provided.
→ The outer jacking points should be used primarily.
- Raise the vehicle.
Raise the vehicle at the prescribed jacking points.
→ 4X00IN LIFTING THE VEHICLE .
- 1.1. Depending on the lifting platform used, access ramps 9453 may be required.

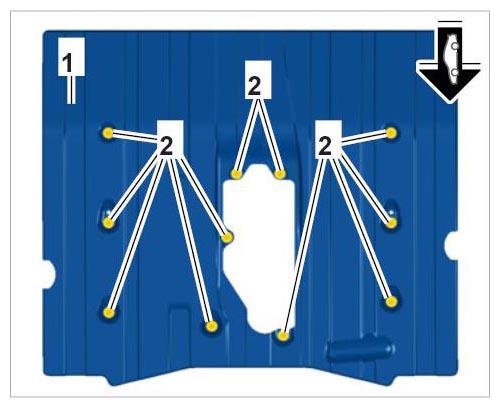

- Unscrew fastening screws -2- and remove engine guard -1- .
