Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles with PCCB: → Information On Removing And Installing Front PCCB Brake Disc
On vehicles with steel brakes: → Installing Front Brake Disc .
WARNING:
Incorrect handling of safety bolts:
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

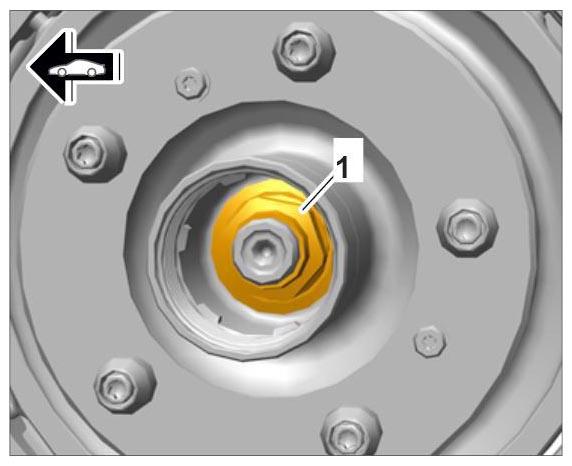

Tighten the hexagon nut -1- using the socket wrench 9471 . Another person is needed in order to actuate the service brake. Tightening torque 460 Nm (340 ftlb.)

Fig 1: Identifying Wheel Hub Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

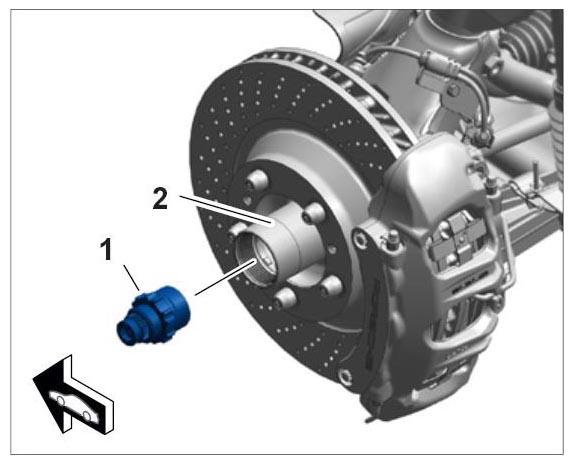

Insert the wheel bolt lock -1- into the wheel hub -2- .

Fig 2: Inserting Wheel Bolt Lock Into Wheel Hub
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install the front wheel. → Installing Wheel With Central Bolt
