Removing KESSY/PAS control unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

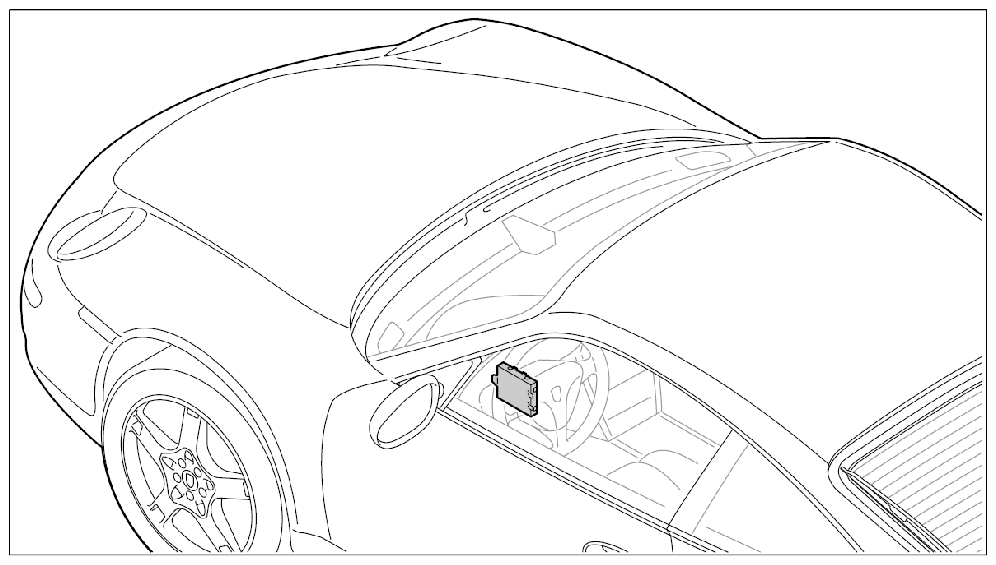

Fig 1: Identifying KESSY/PAS Control Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

To provide a clearer picture, the illustrations are shown from the bulkhead view.

Release and open the locking lever located "in the forward direction of travel".

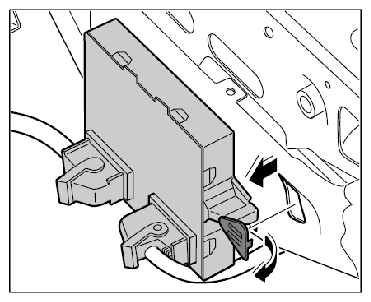

Fig 2: Removing Securing Bolt And Unclipping Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift control unit at front out of the support for the steering wiring.
Push control unit forward in "direction of travel" and disengage it from the support for the steering wiring.

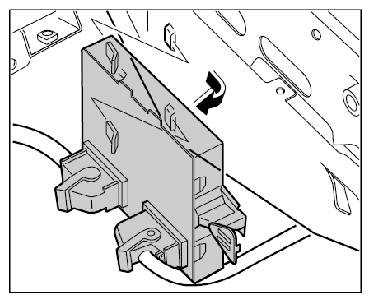

Fig 3: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Depending on the vehicle equipment, the control unit has one or two connectors.
Release both electrical connectors -1, 2- -A- and unplug them from the control unit.

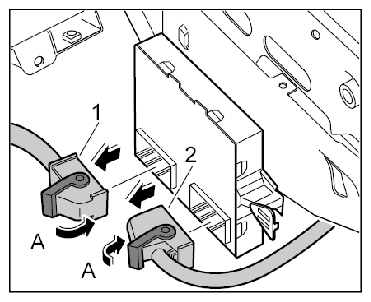

Fig 4: Removing Electrical Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take out the control unit.
