Removing luggage compartment light

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of bulbs

Risk of damage to bulbs and the bulb housing

→ Switch off ignition and remove ignition key.

→ Switch off the relevant loads when changing bulbs.

→ Only use bulbs listed in the bulb table.

→ Only install clean bulbs that are free of grease.

→ Always use a cloth or soft paper when working with bulbs.

→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.

→ In certain states, it is compulsory to carry spare light bulbs.

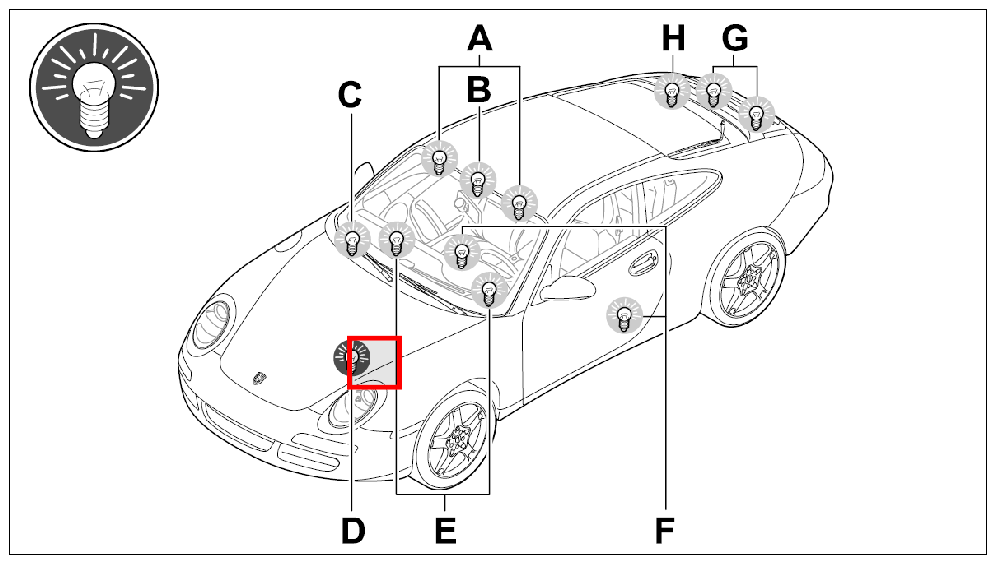

Fig 1: Identifying Luggage Compartment Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

D - Luggage compartment light

Press luggage compartment lamp carefully out of the luggage compartment trim at the cut-out -arrow- using a screwdriver.

Fig 2: Removing Luggage Compartment Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off plug on luggage compartment light and remove luggage compartment light.
