Removing Main Headlight

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Risk of damage to headlights due to chafing and excessive temperatures.

Headlights must not be covered when they are switched on, e.g. by wing protector or film.

Switch off ignition.

Release carpet at the side by unscrewing plastic nut -A, arrow- .

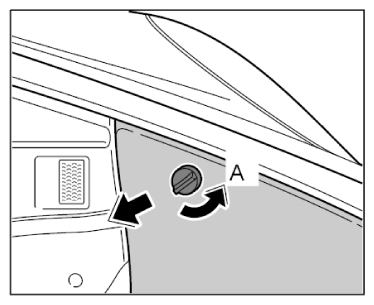

Fig 1: Releasing Carpet At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull rubber stopper -B- out of the release opening.

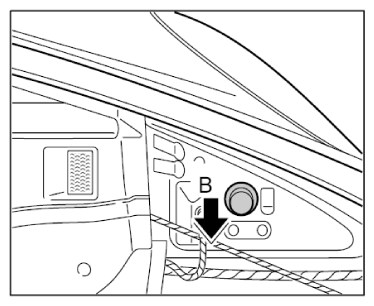

Fig 2: Pulling Rubber Stopper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place the socket wrench from the tool kit on the release axle.
The toggle of the socket wrench should point horizontally to the rear.
Turn the socket wrench through approx. 180° -A- and leave it in position.
The headlight is now unlocked and can be pulled forwards out of the wing.
Turn the socket wrench back until it points vertically -B- downwards.

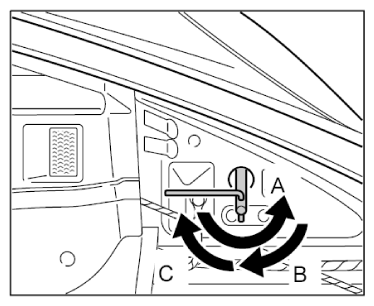

Fig 3: Releasing Headlight

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
